St. Petersburg Sosnovaya Polyana 7–17 Masterplan St. Petersburg, Russia 2010–2012

These masterplans, commissioned by Russian developer SPB Renovation, provide a structure for the regeneration of three neighbourhoods in St. Petersburg with a combined area of 160 hectares. The neighbourhoods were originally built during the Khrushchev era. Together, the masterplans envisage the construction of 1,333,000m2 of new, predominantly, residential space and a projected population 42,000 people.

The Sosnovaya Polyana 7–17 masterplan proposes two different structures - one that frames the existing buildings and a second that extends the original pattern of the Khruschev era. The first consists of eight new Courtyard Blocks, with a landscaped garden at the heart of each. These eight blocks help to bring cohesion to the neighbourhood.

Image 1

  • 9_1001_View_SouthEast_web

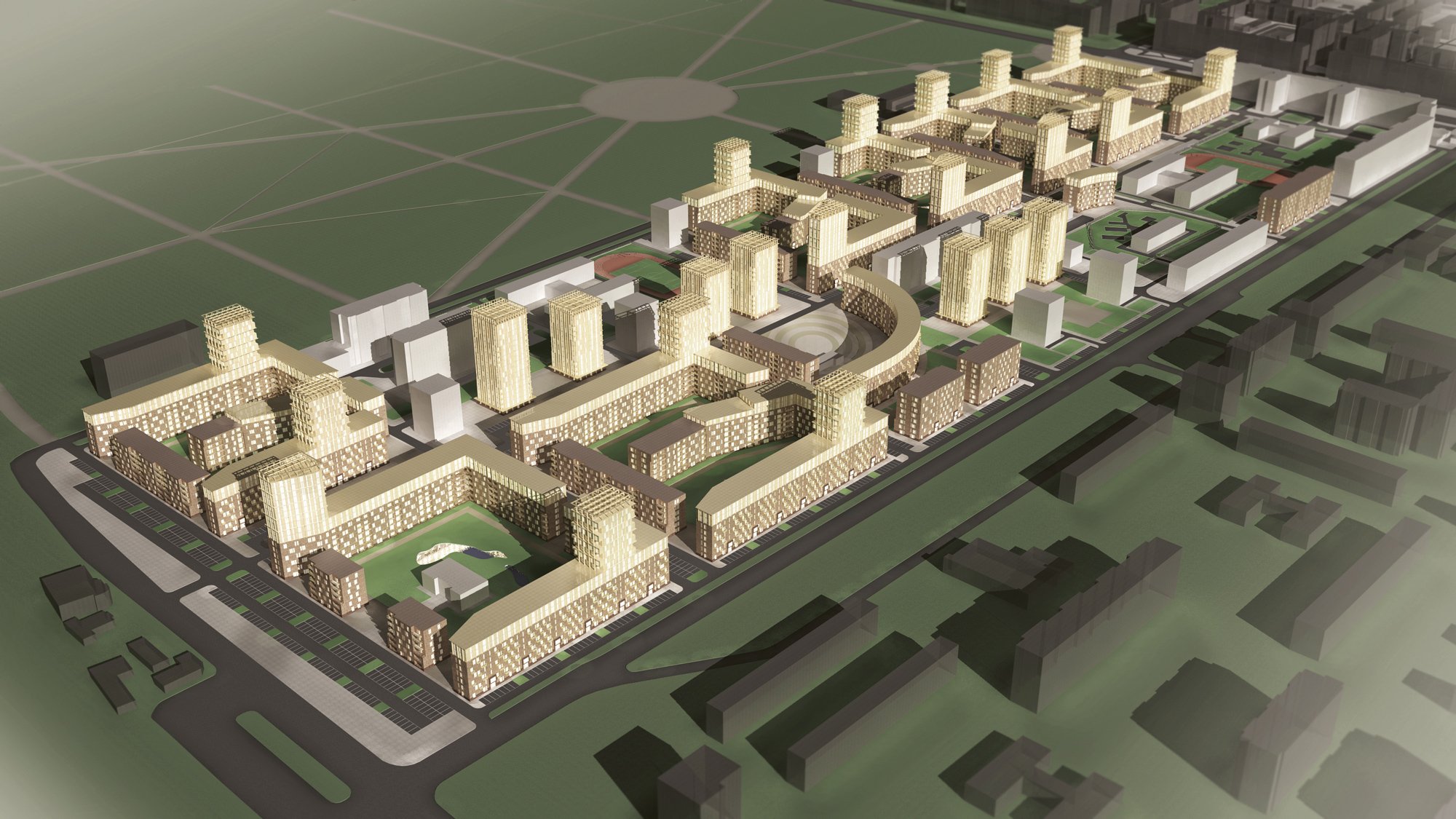

    The 40 hectare Sosnovaya Polyana 7–17 masterplan typifies our approach. Slab blocks set in an open landscape are now integrated into a cohesive public realm framed by buildings that are consistent in height, design and material
  • 9109_N11.jpg

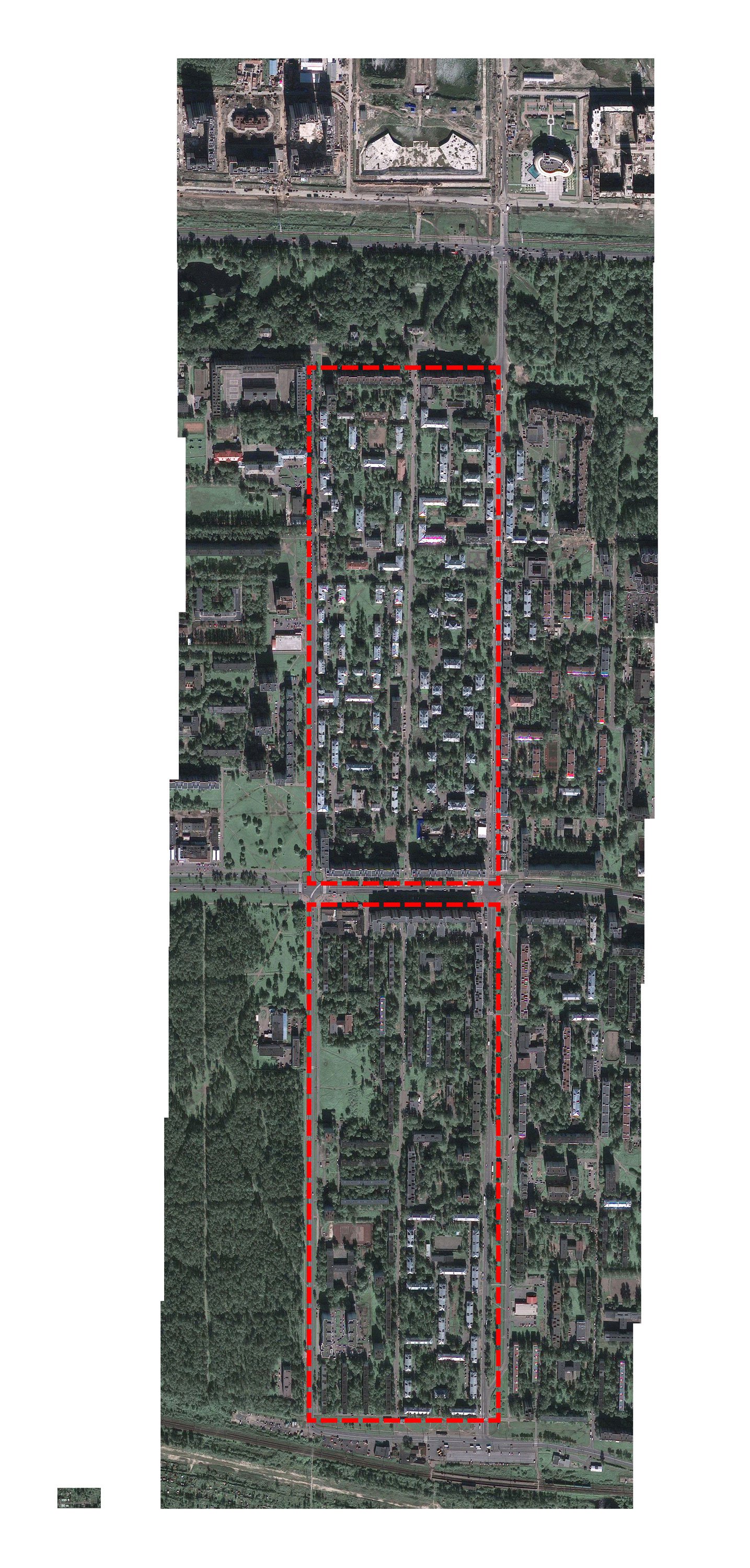

    Sosnovaya Polyana 7–17 'quarter' is 1.2km x 350m in size. The City authorities consider it to be underdeveloped
  • 9_1009_L_0005_D_Masterplan_Option1A_web

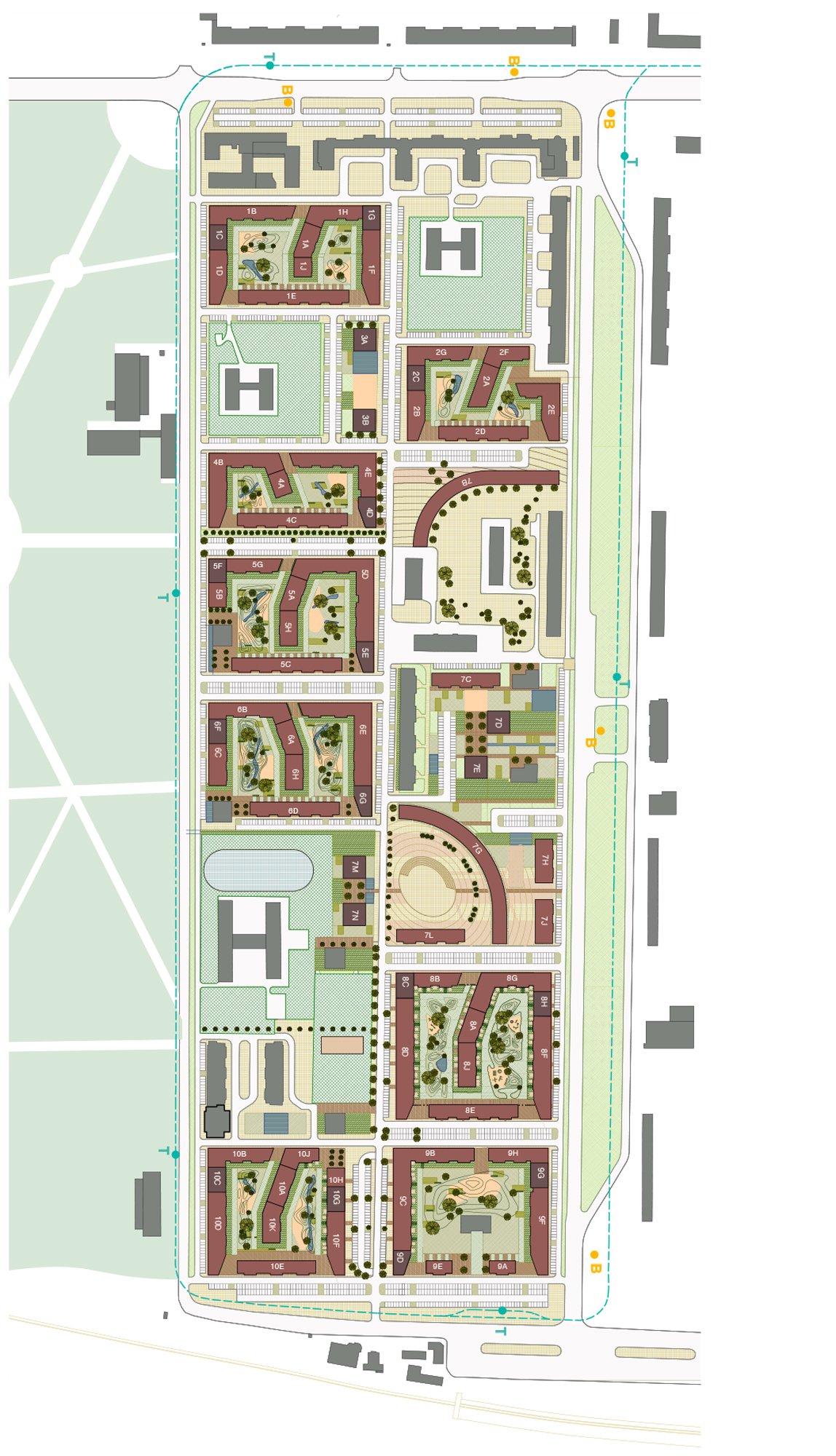

    Sosnovaya Polyana 7–17 contrasts two different urban models: the first, ‘traditional’, a series of city blocks that frame the Khrushchev era buildings and a second ‘modern’ one that extends the original pattern.
  • 9_1009-Final-View-1_web

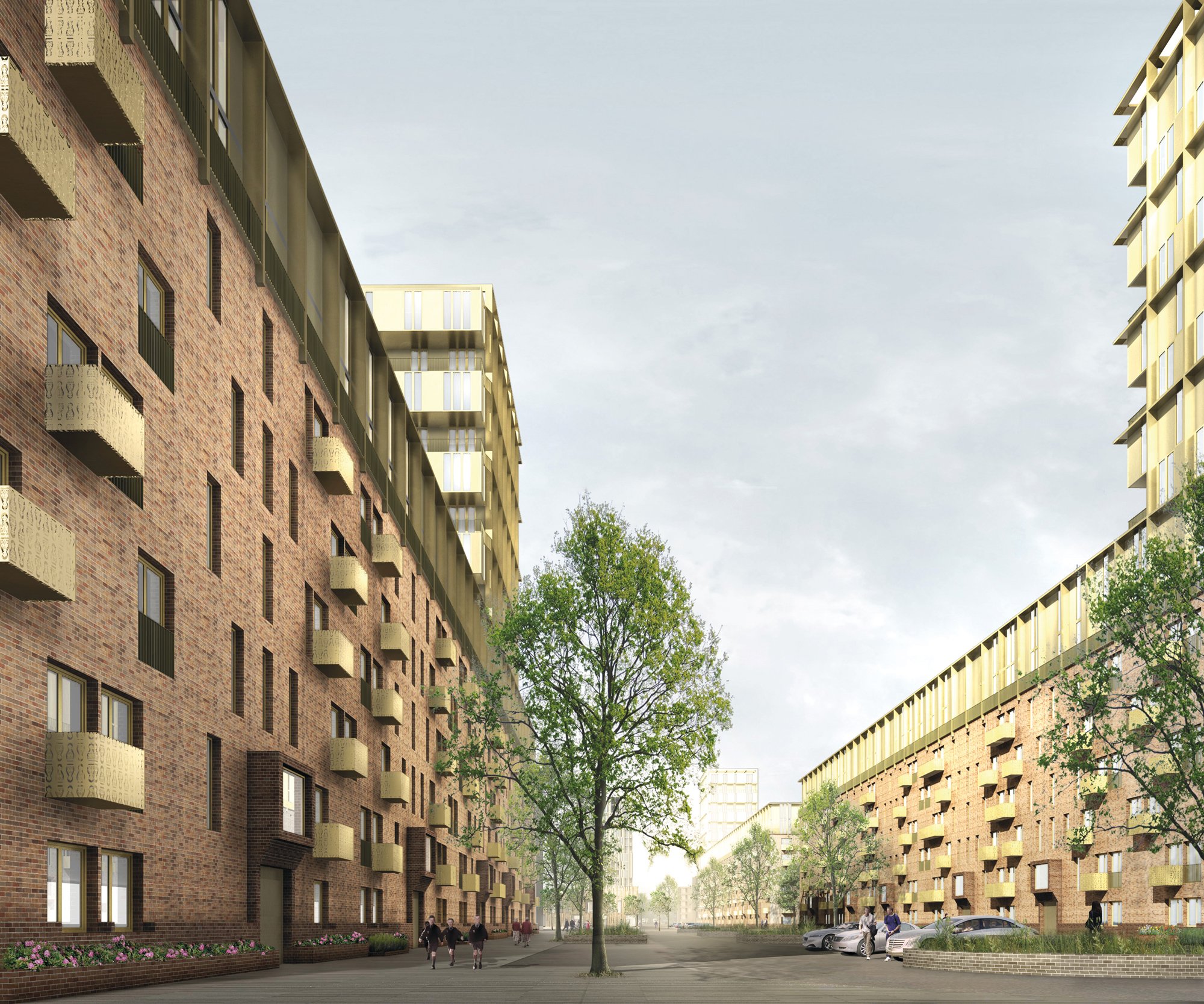

    The scheme creates three new squares. Avenues between the Courtyard Blocks accommodate much of the parking. The public realm is characterised by the formal arrangement of trees lining streets and avenues and forming a canopy above the squares
  • 9_1001_View_Courtyard_web

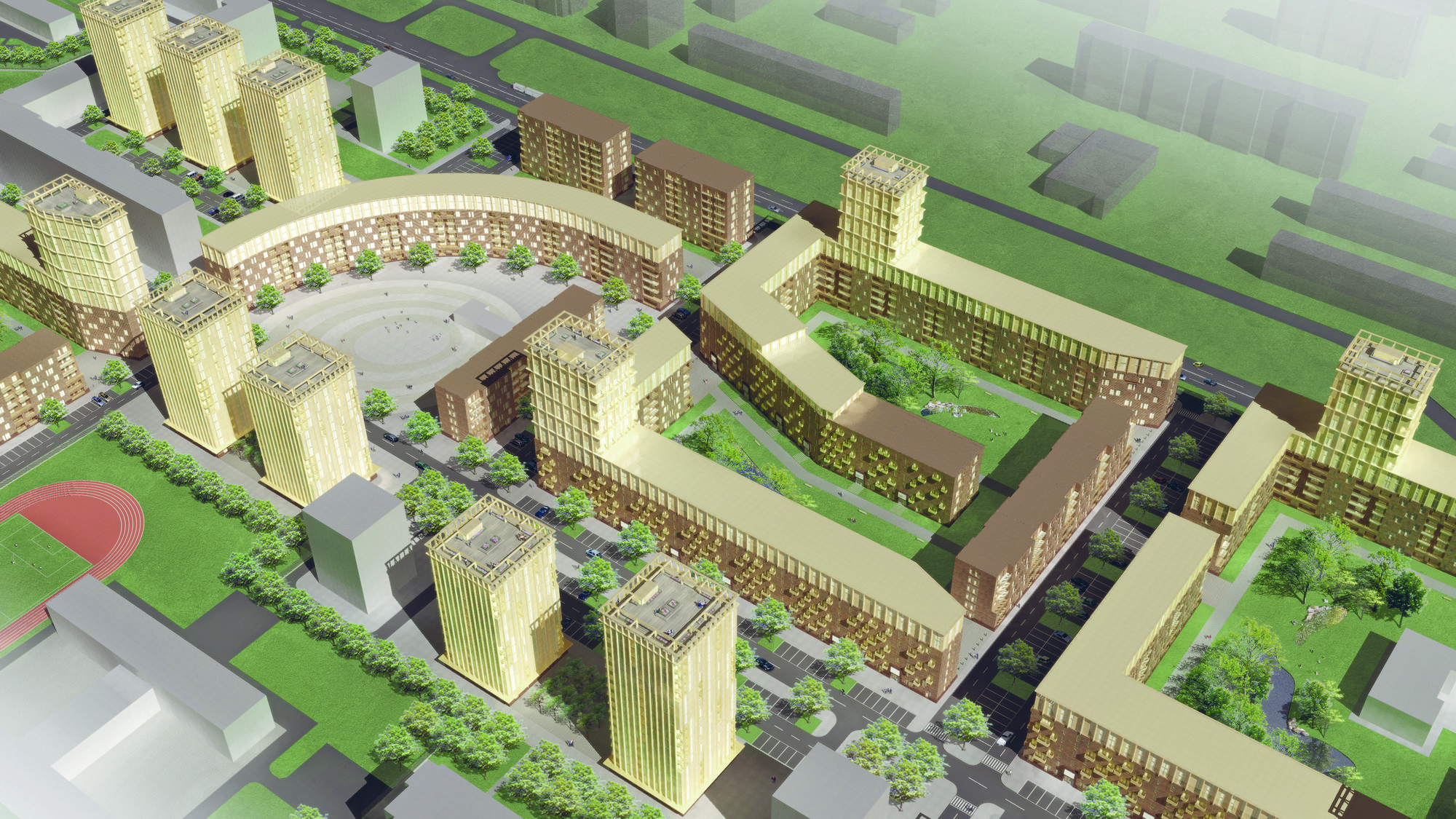

    By contrast, the gardens are romantic places, designed to emulate the best elements of the existing mature landscape – woodland and grassland – and to conjure up the landscape in the surrounding countryside

Technical

  • Appointment: 2010
  • Completion: 2012
  • Area: 1,333,000m2
  • Client: SPB Renovation
