Crispin House Leeds

Crispin House is Grade 2 listed. Situated in the Northern Quarter of Leeds, it was built as a factory (1914-1916). The building is approximately 75m long, tapering in width towards the west, with a dome at its “prow”. The brief was to accommodate a range of one to three-bedroom serviced apartments both for sale and rent. Associated facilities include reception, restaurant, health spa and business centre; all with associated parking.

The design retains the façade behind which a new steel-frame utilises more fully the volume created by the original generous storey heights, accommodating 76 apartments. Levels 1 and 2 below ground accommodate the health spa, parking and support facilities.

Image 1

  • 0007_Crispin_house_CQy_xrwWsAAnOvm

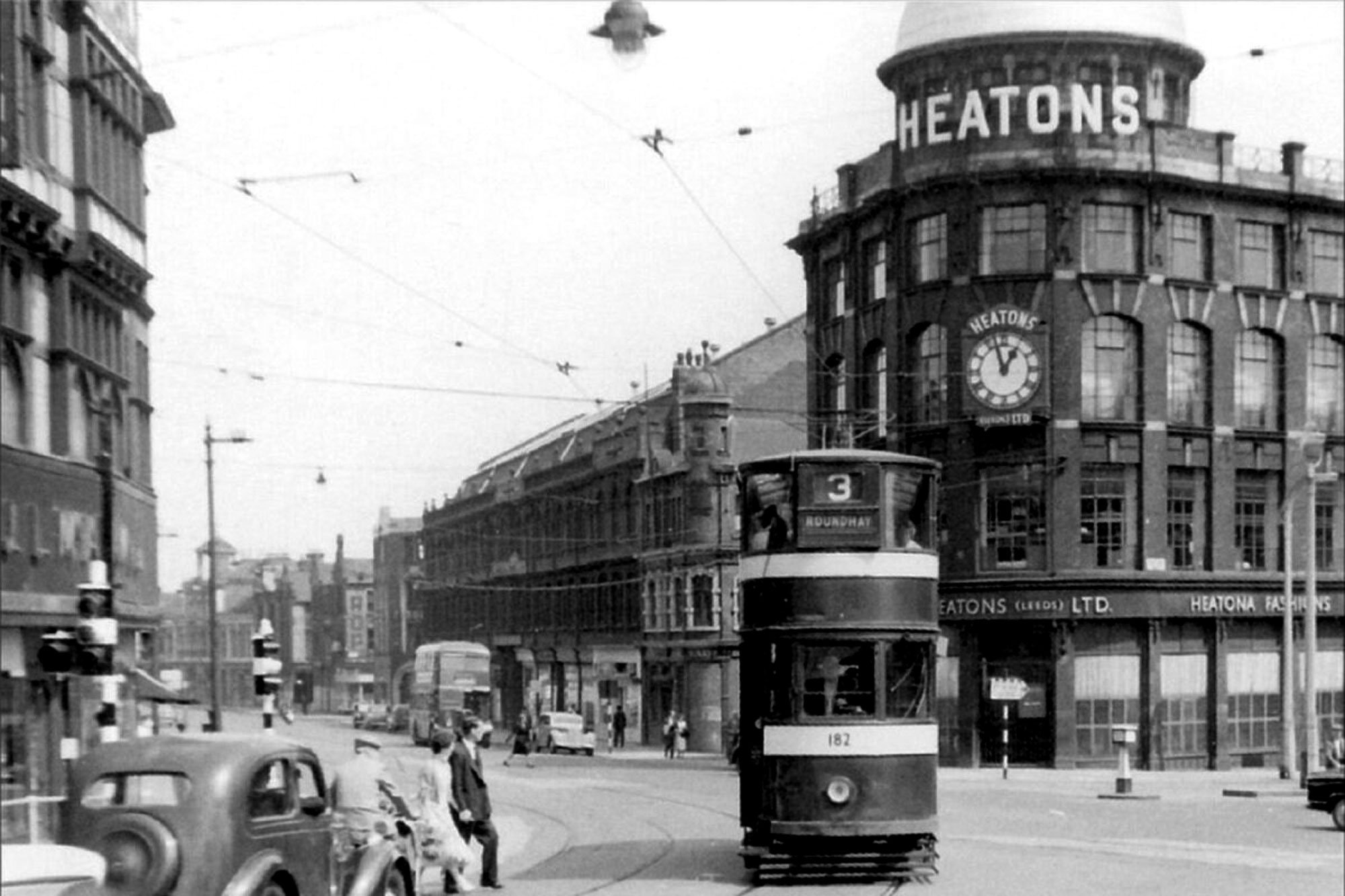

    Crispin House built as a clothing factory then known as Heatona House
  • 0007_Crispin_before

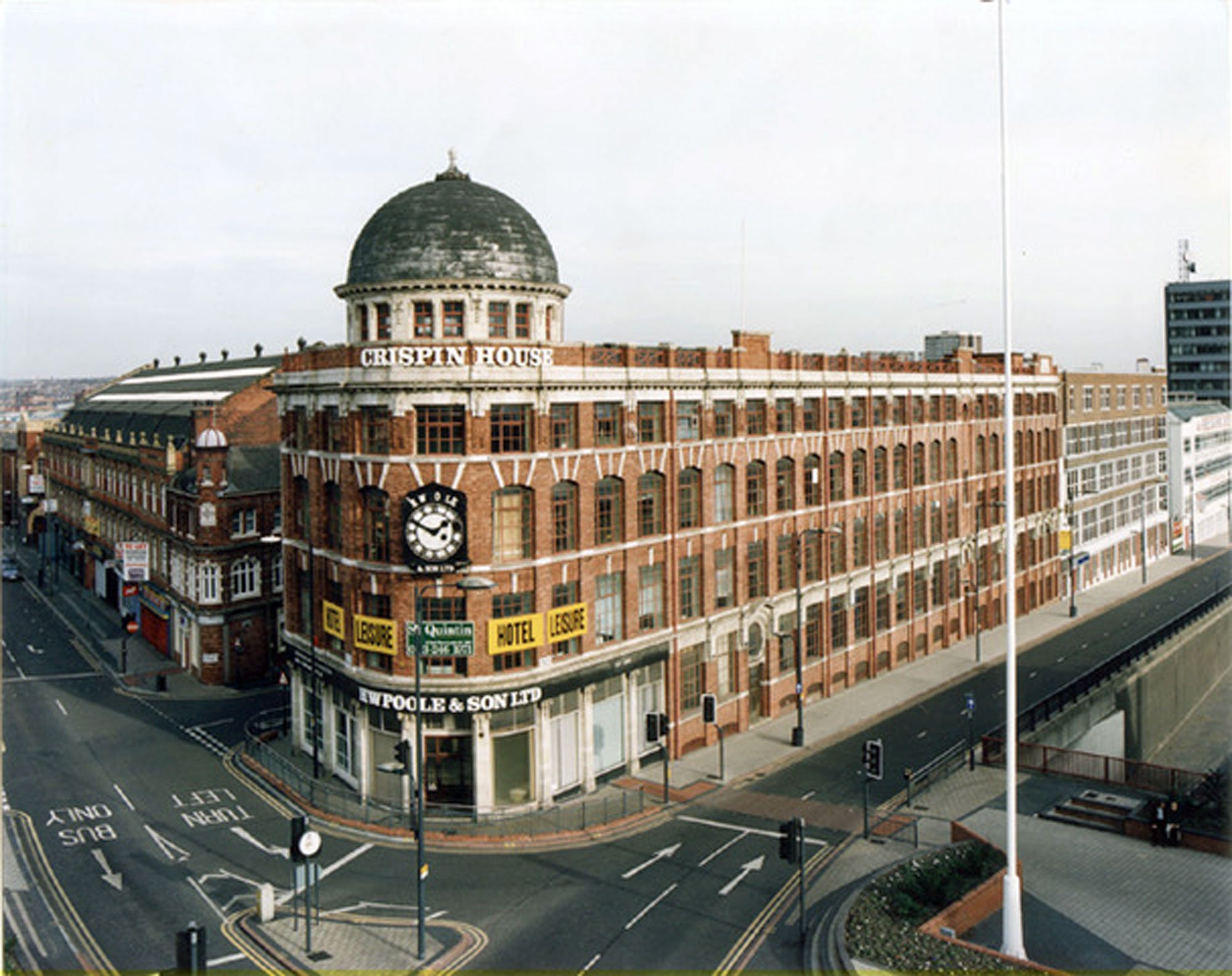

    Then named Crispin House
  • 0007_Crispin_House_New_York_Road,_Leeds_(geograph_5180415)

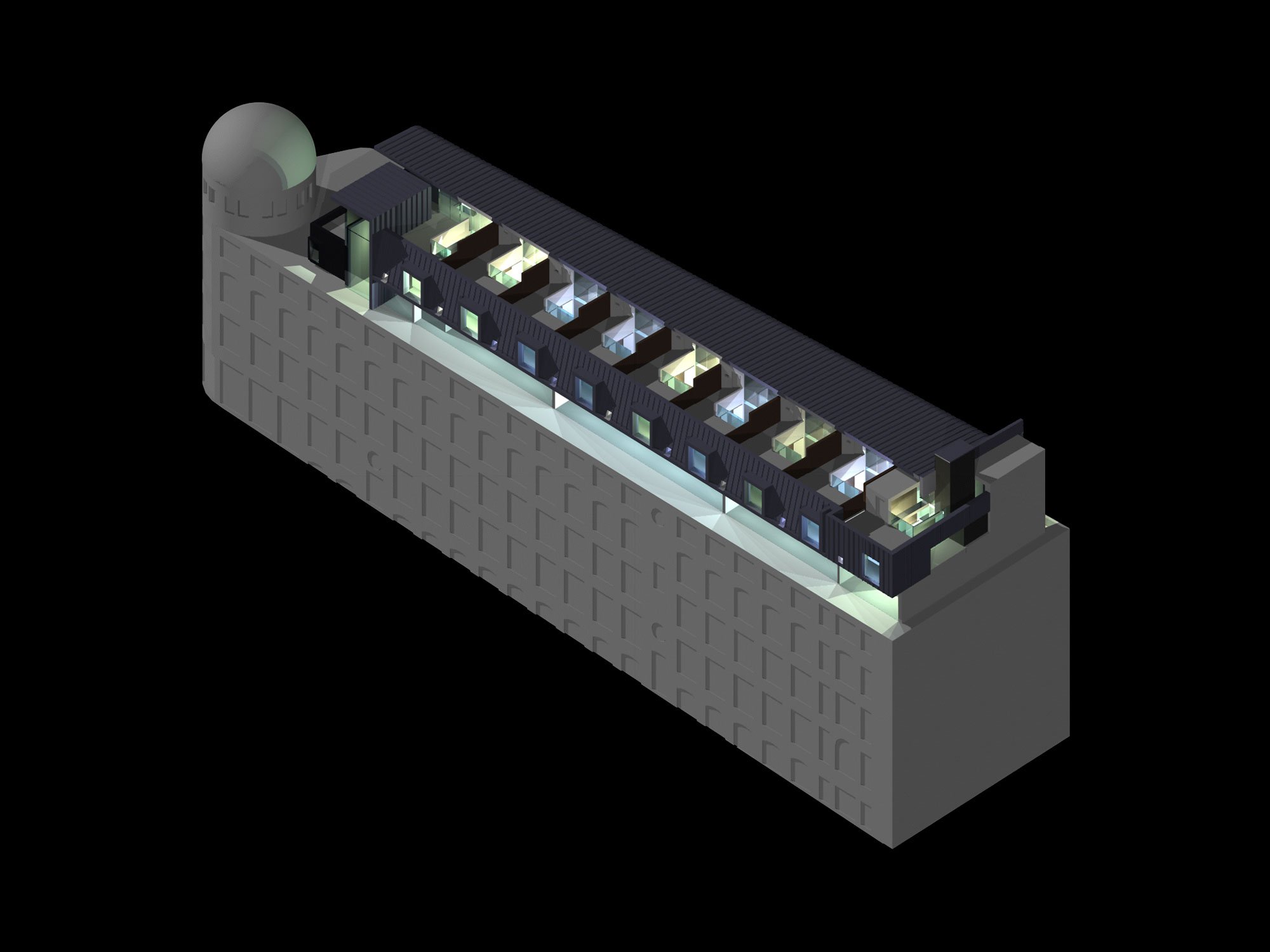

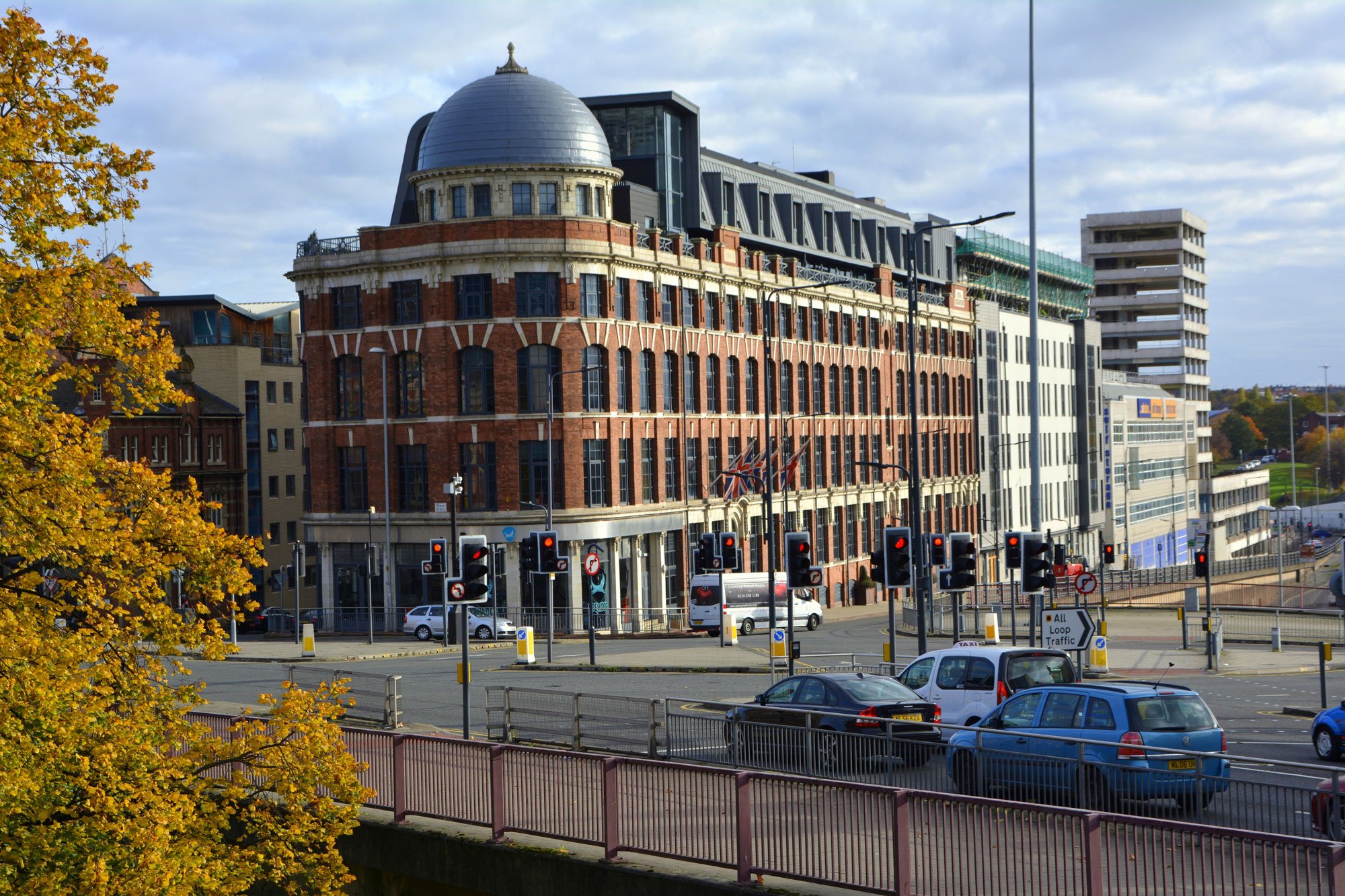

    On the roof (levels 9-11) a row of nine new 3-storey houses are enclosed within a 3-storey zinc mansard.
  • 3000_0007_night-axo.300dpi
    Inside the houses piggyback over 3 south-facing apartments. Each is designed with open plan living around a court at level 10, with the master bedroom at level 11, and a second bedroom at the entry level 9.
  • 3000_0007_NYRdele

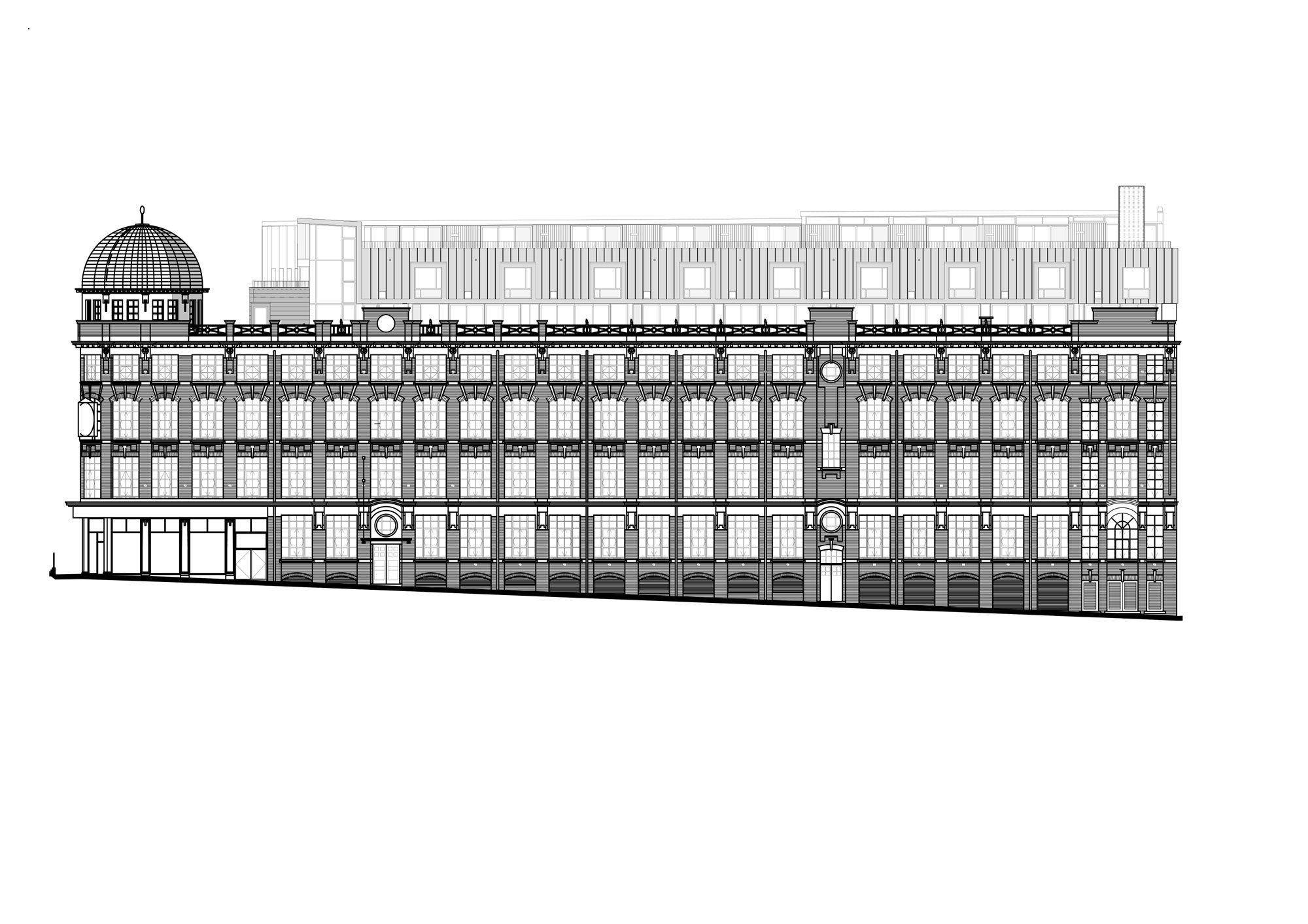

    The restaurant is situated at the ‘prow’ of the building, at levels 2 & 3. Levels 2-8 are laid out behind the existing brick façade. Levels 3/4 and 6/7 accommodate double height apartments, with single-storey apartments on levels 5 and 8.

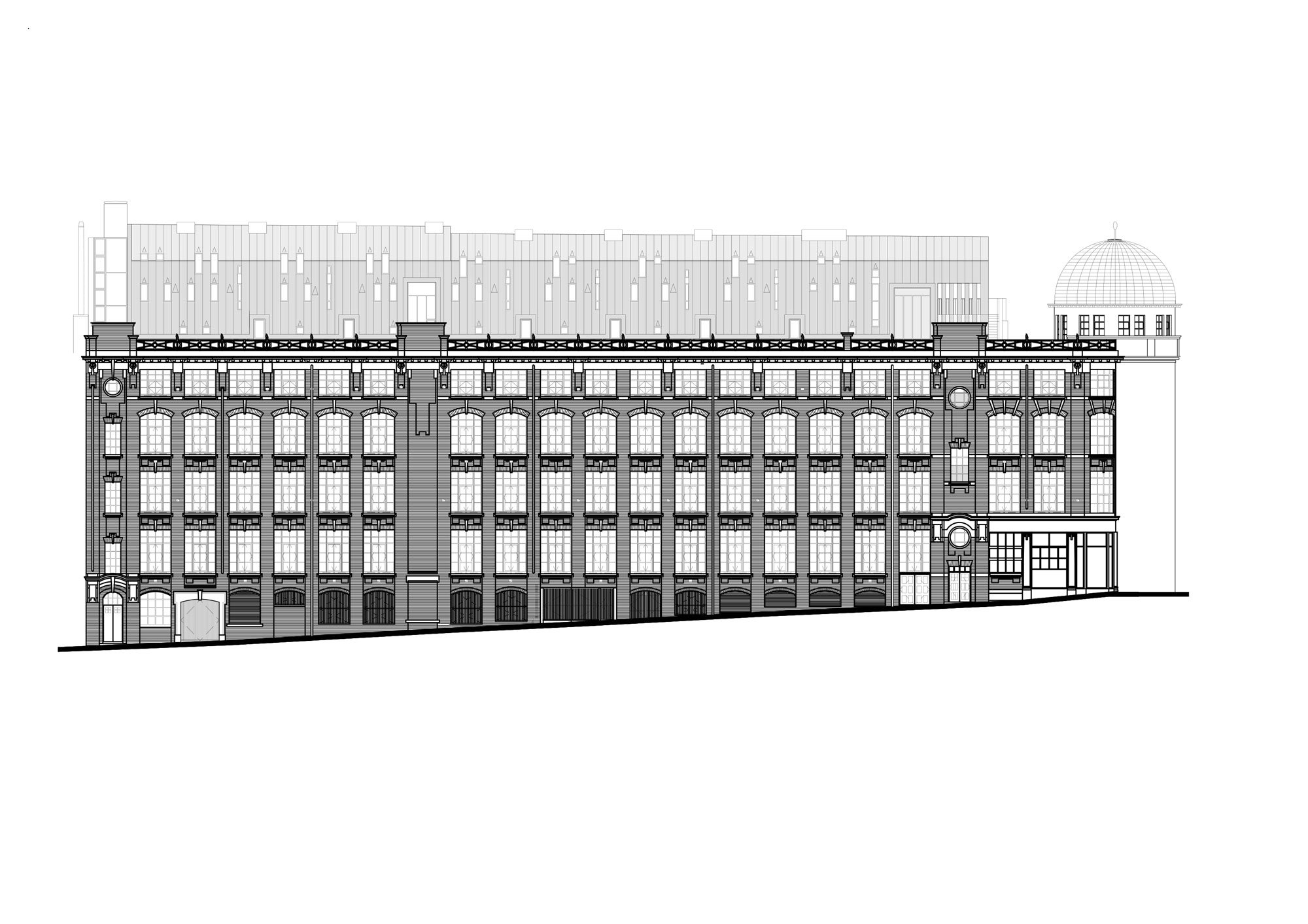

  • 3000_0007_TrafalgarStele
    Apartments on levels 5-8 overlook the “Metropolis”, a brick-lined court with a south aspect.

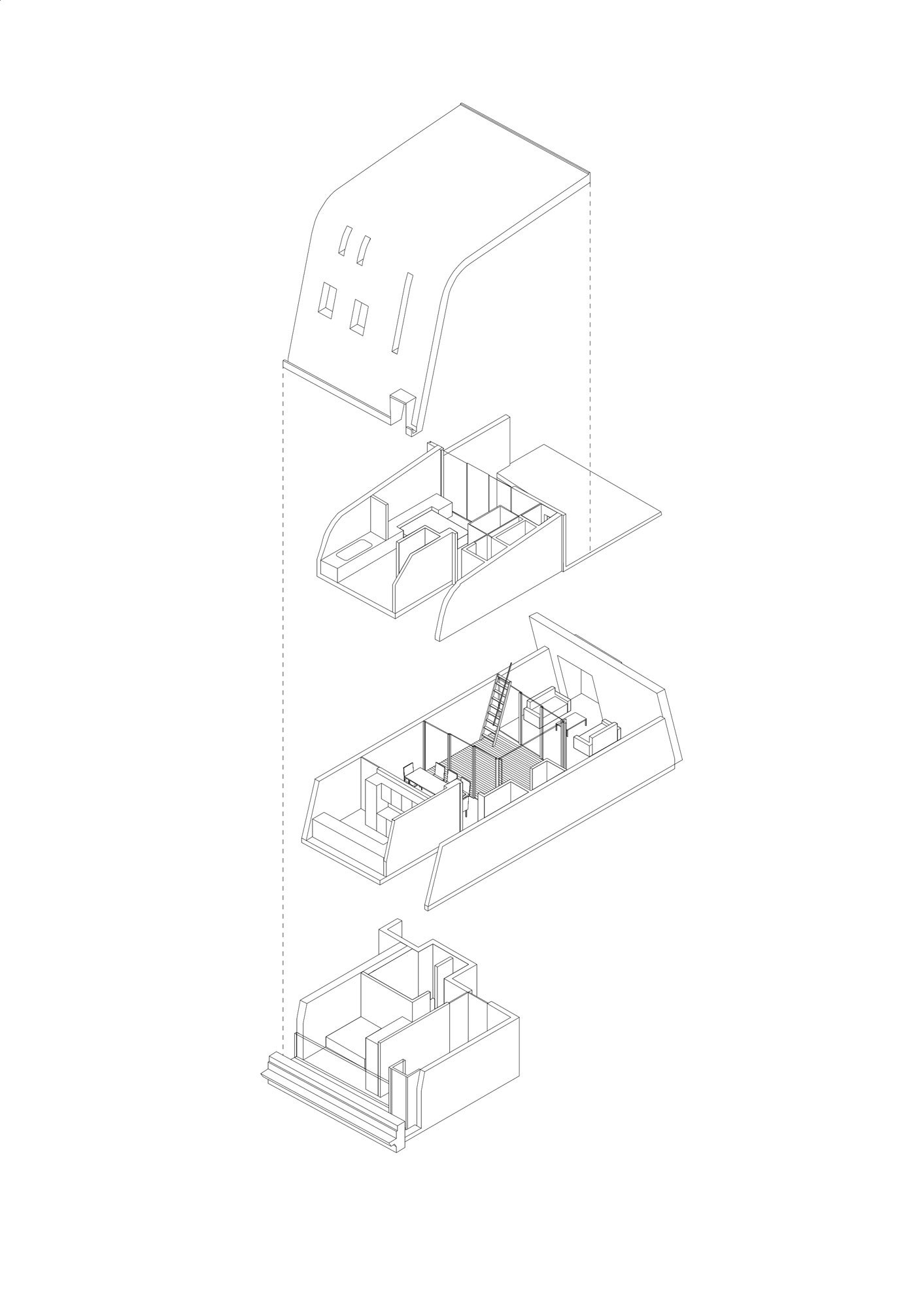

  • 3000_0007_Penthouse-axo
    On the roof (levels 9-11) a row of nine new 3-storey houses are enclosed within a 3-storey zinc mansard.
  • 0007_Photo_zinc-detail2

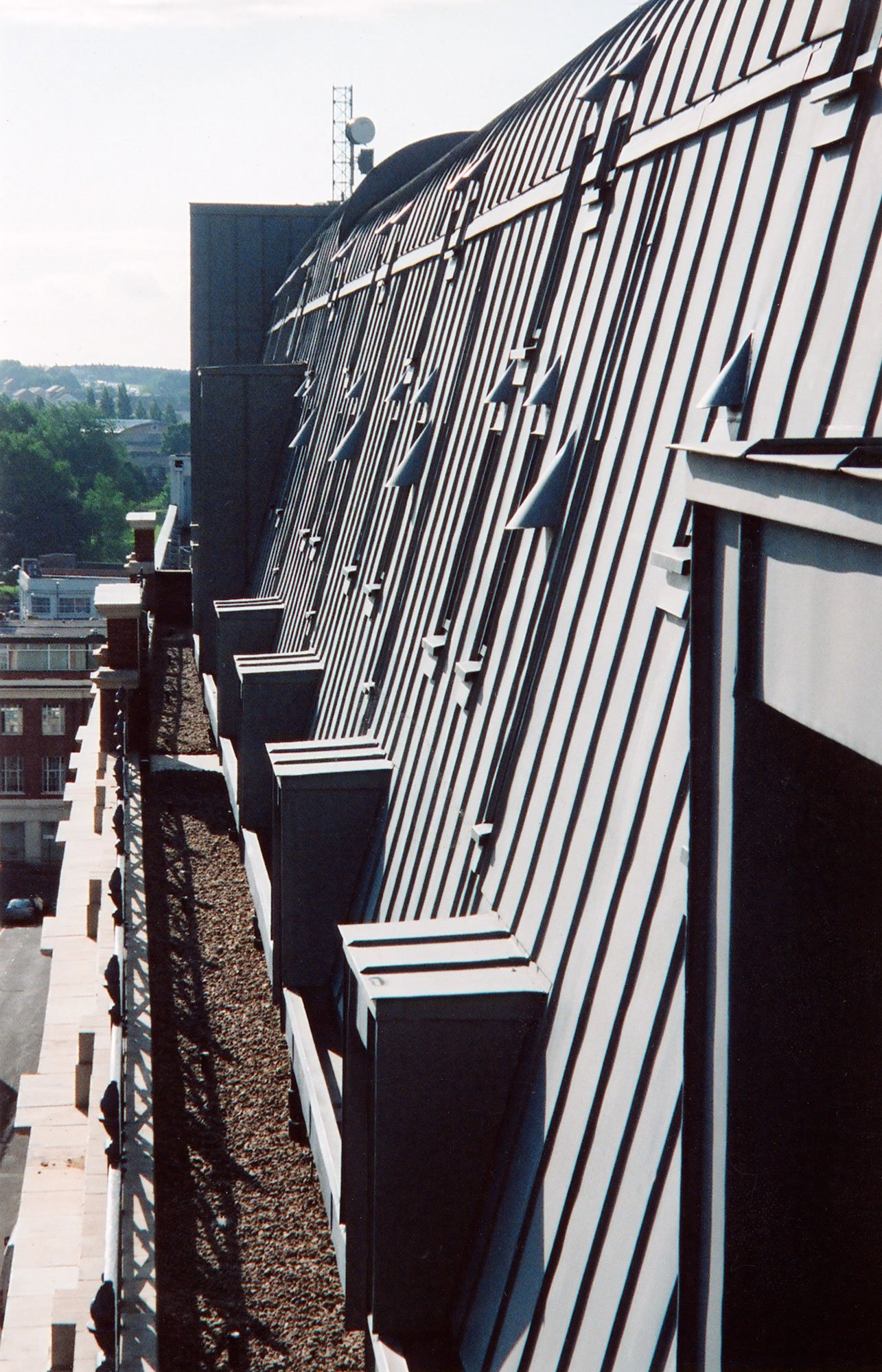

    On the roof (levels 9-11) a row of nine new 3-storey houses are enclosed within a 3-storey zinc mansard.

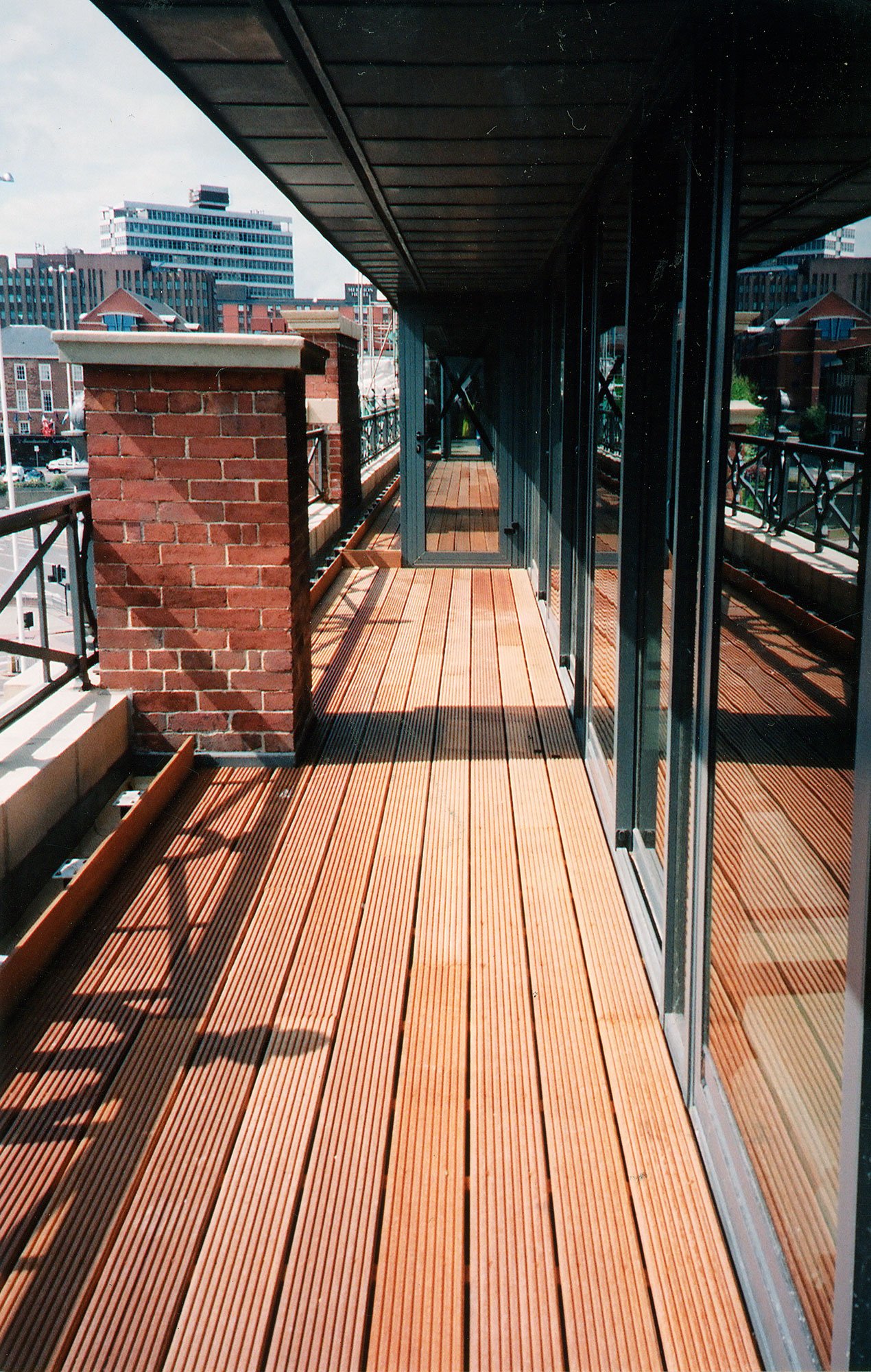

  • 0007_Photo_level-9-terrace
    A lower band of glazing on both the north and south elevations separates the new zinc roof from the existing building.
  • 3000_0007_long.section

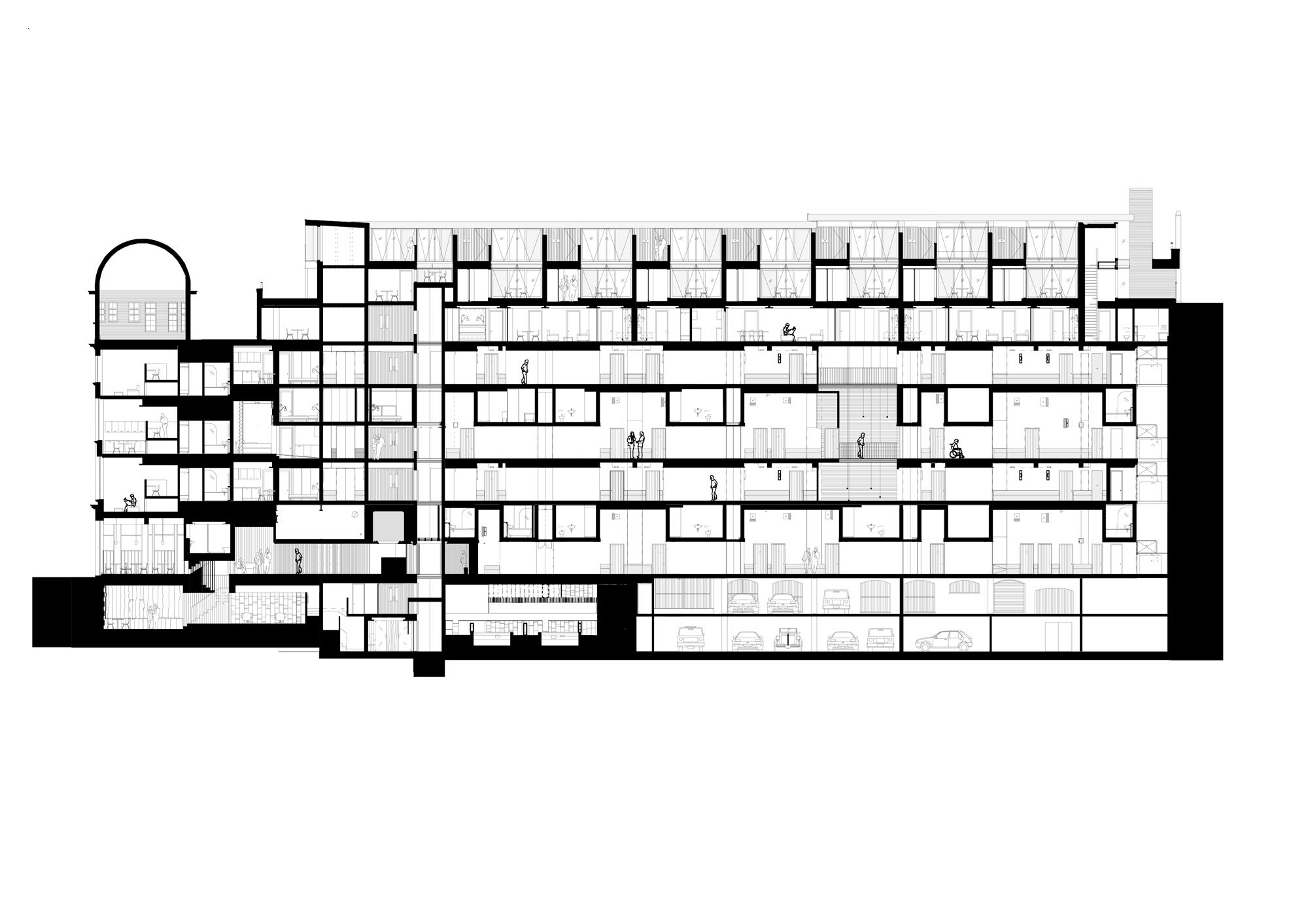

    Long internal hotel-type corridors often associated with this type of development have been avoided. Instead short timber panelled corridors link a series of double-height internal courts; these have stone floors and plastered walls.
  • 3000_0007_Cross-Section

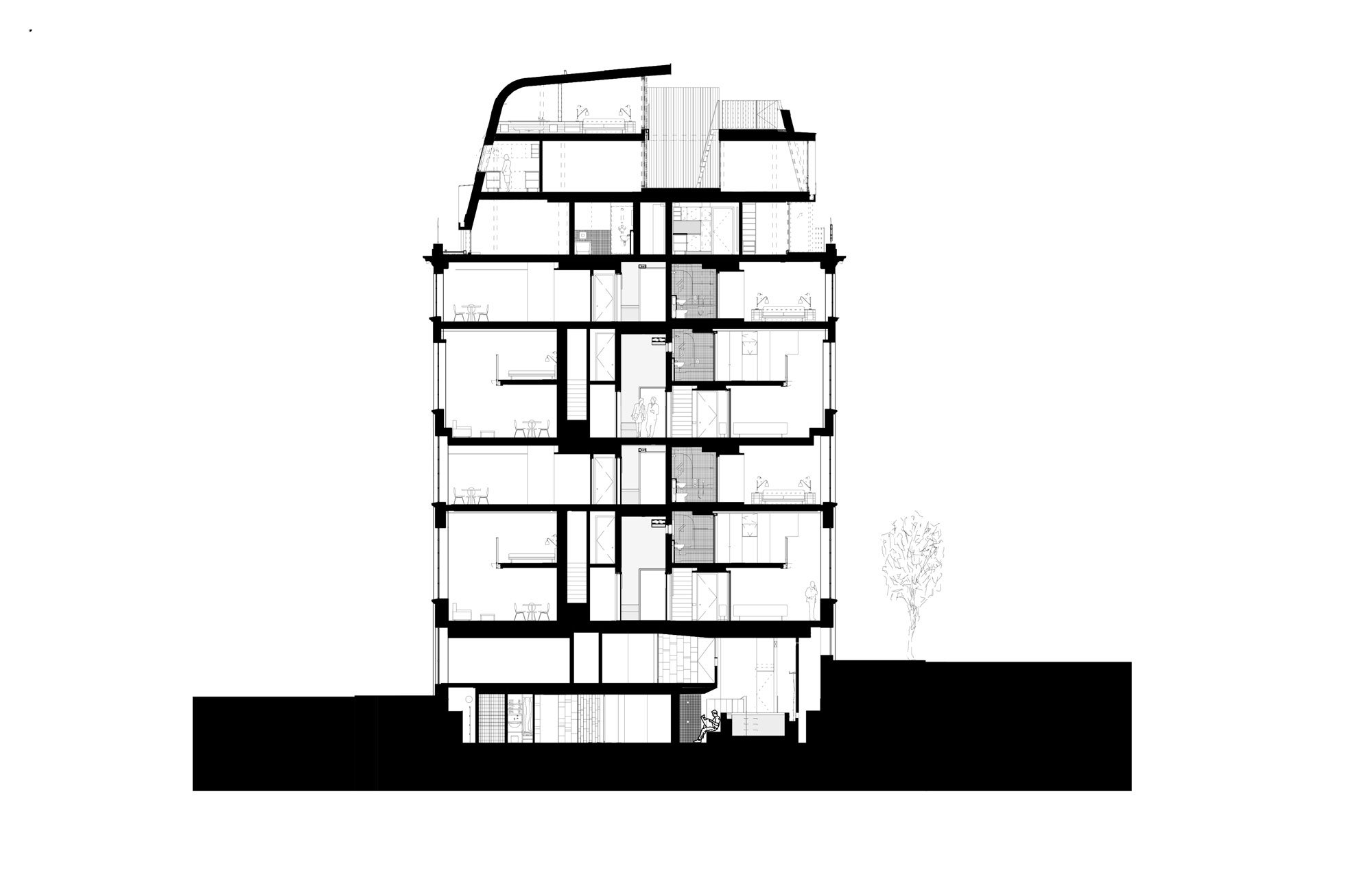

    Windows to the north take advantage of cooler air and are sized to allow cross ventilation without compromising thermal performance in winter.

Technical

  • Client: Cityfusion
