333 Kingsland Road London 2015–2020

Shortlisted for the Stirling Prize in 2022 this project combines an 11-storey apartment building providing 68 affordable homes and a 350-pupil primary school, with shops at street level. The relatively compact footprint of the residential tower frees up much of the site for the school and protects it from the noise and fumes from one of London’s busy arterial roads. The adjacent residential tower reads as both a landmark for the development as a whole and as a central European type apartment block with its covered loggia at street level.

Image 1

  • 91508 NK Resi1

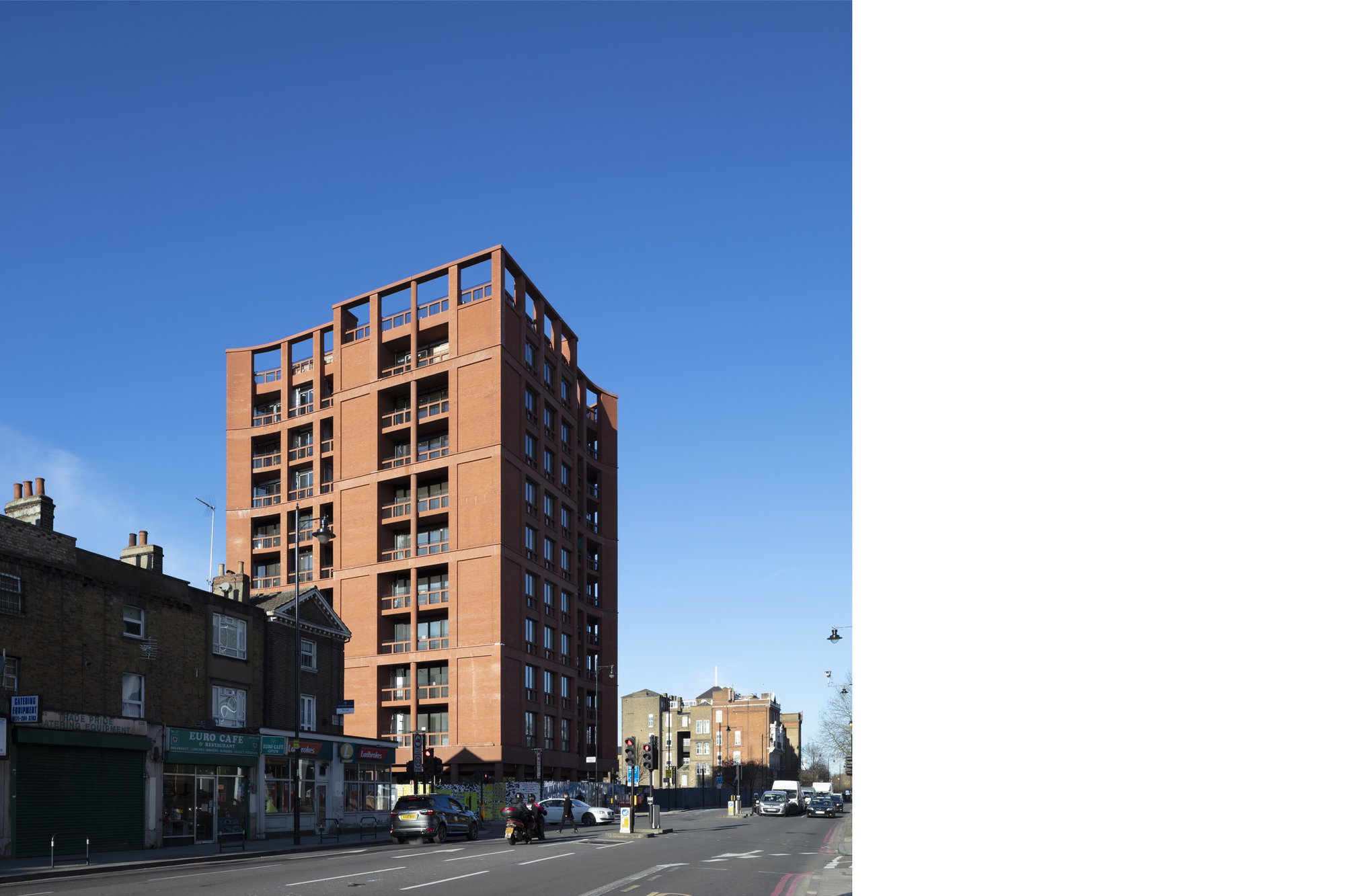

    The residential tower is located on Kingsland Road, one of Hackney’s busy arterial roads on the edge of a conservation area
  • 3000_91508_Photo_NK_hackpri01_0012_6.jpg
    The accommodation is 'pushed' to the edge of the site to carve out the largest possible courtyard play space for the School
  • 3000_9_1508_0_Planometric_Etching.jpeg
    It represents an exemplary approach to hybrid architecture combining different functions without losing the strengths of either the original educational or residential building typologies
  • 3000_91508_Photo_NK_hackpri37_crop_copyright-Nick-Kane_web.jpg

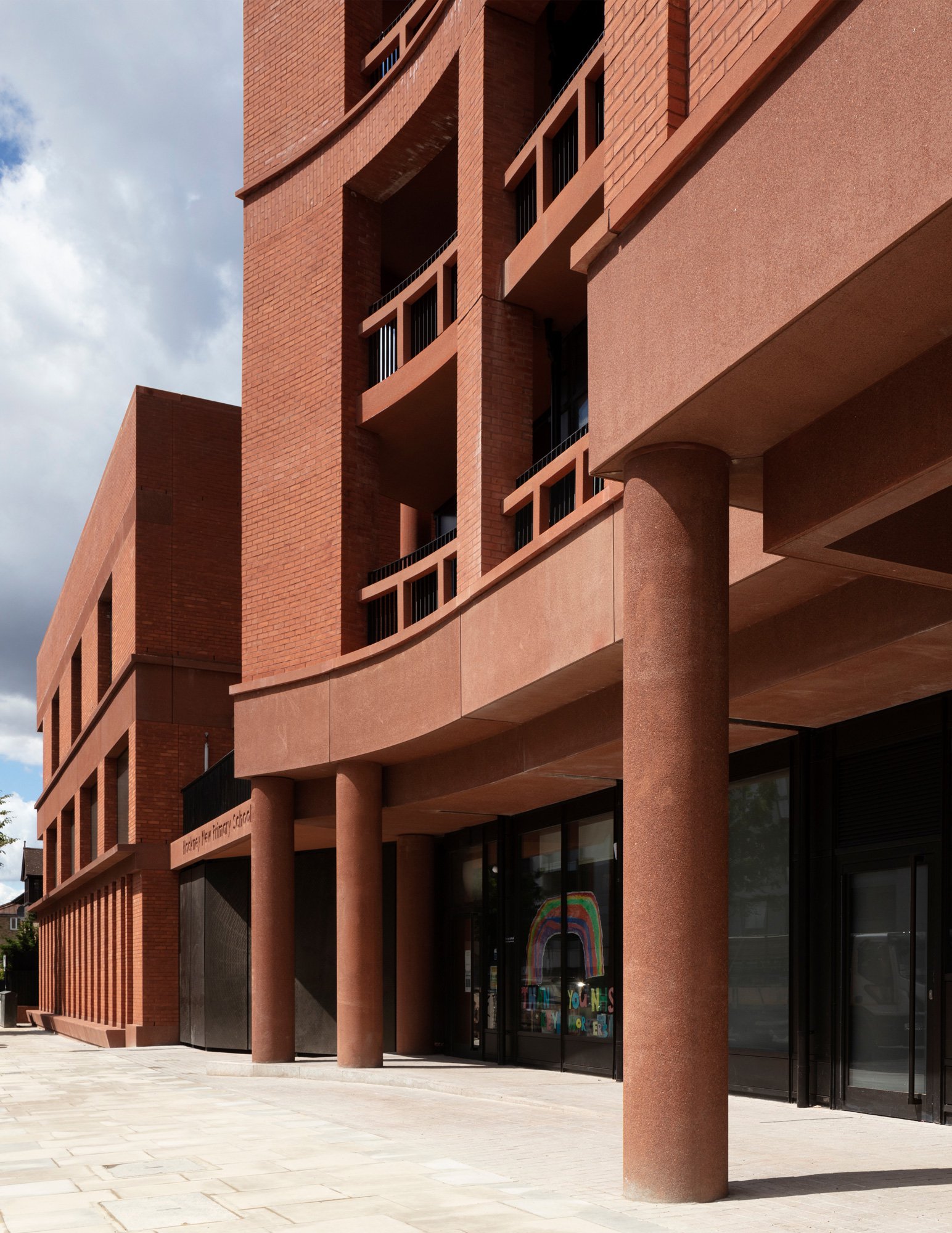

    The design uses the scale and composition of the apartment building's façades and arcades at the base to give weight to the building
  • 3000_91508_Photo_HHbr_NC_1210_crop_gs_web.jpg

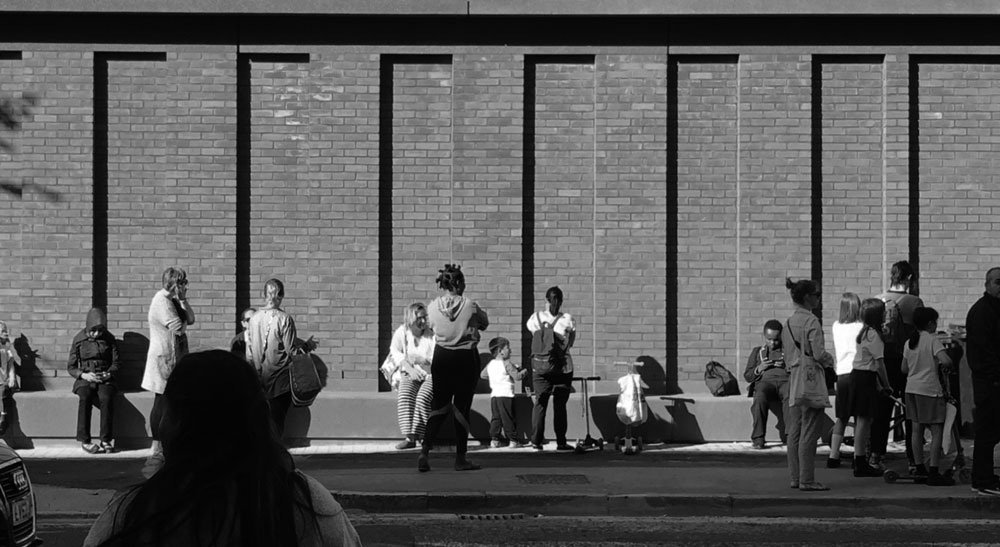

    A bench by the school entrance means that parents can sit in the sun and chat whilst waiting for their children at the end of the school day
  • 3000_91508_Photo_NK_hnpsres35_0982.jpg
    Arcades create generous pavements and shelter from the sun and rain
  • 3000_9_1508_00_web.jpg

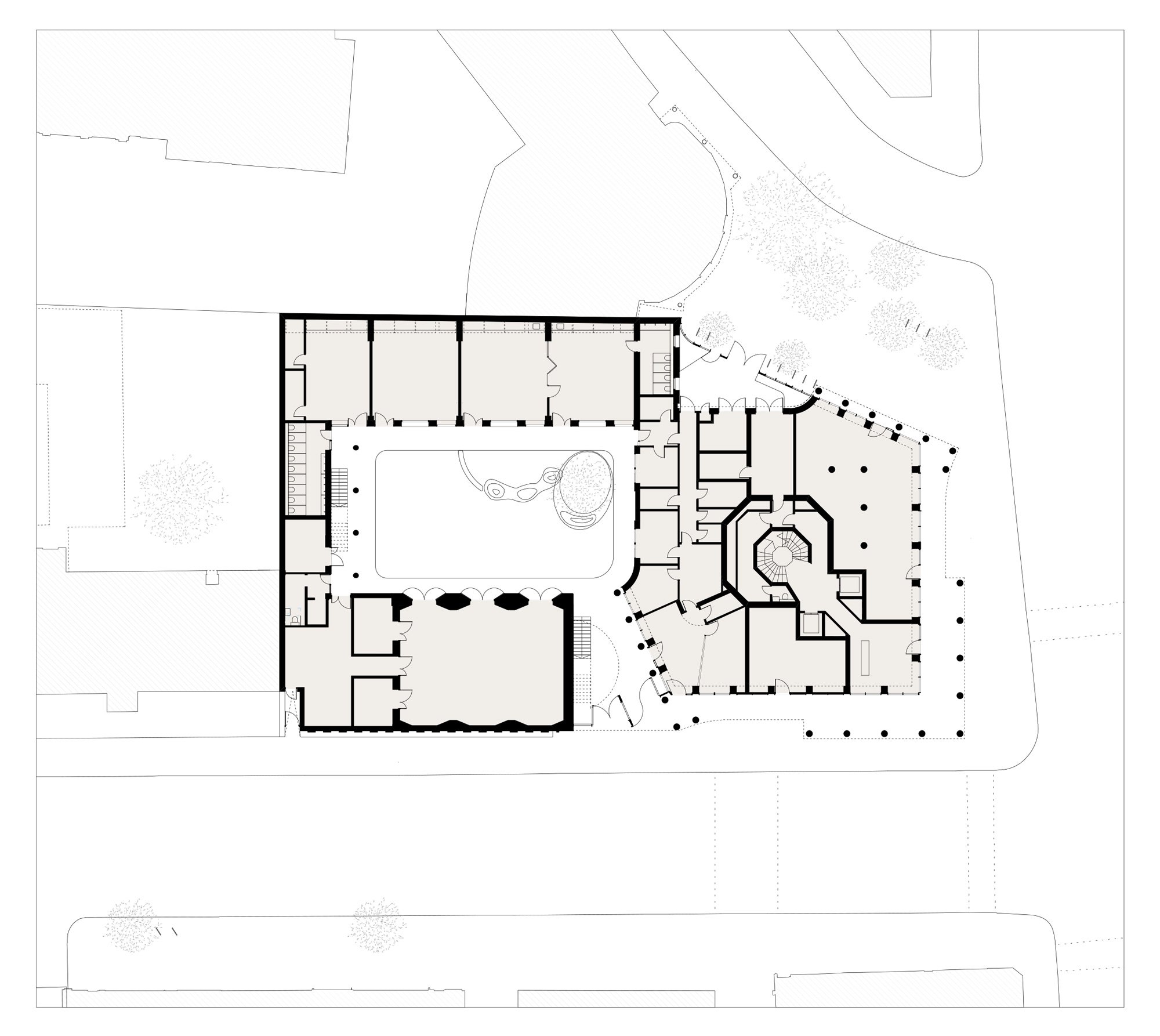

    Ground floor plan - The residential building's compact plan frees up the site for the School and its generous open-air courtyard playground
  • 3000_91508_Photo_NK_hnpsres29.jpg

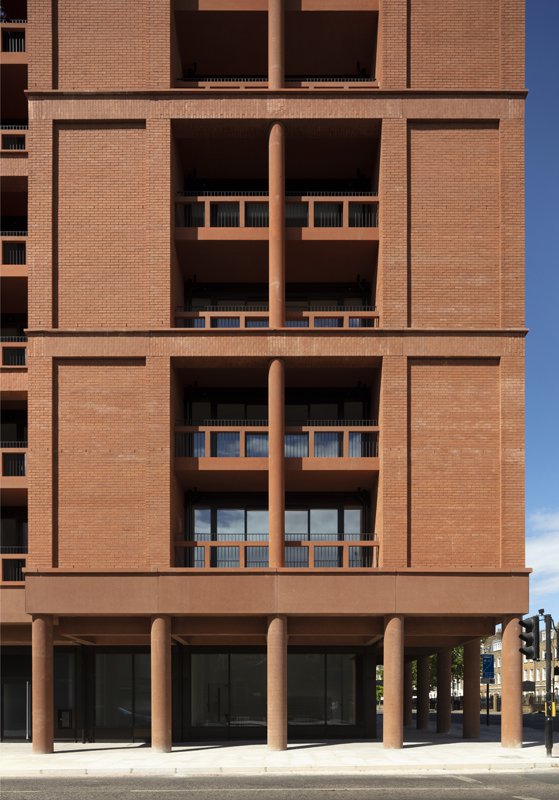

    Floors are paired, with loggias carved out of the mass of brickwork
  • Hackney New Primary School 333 Apartment

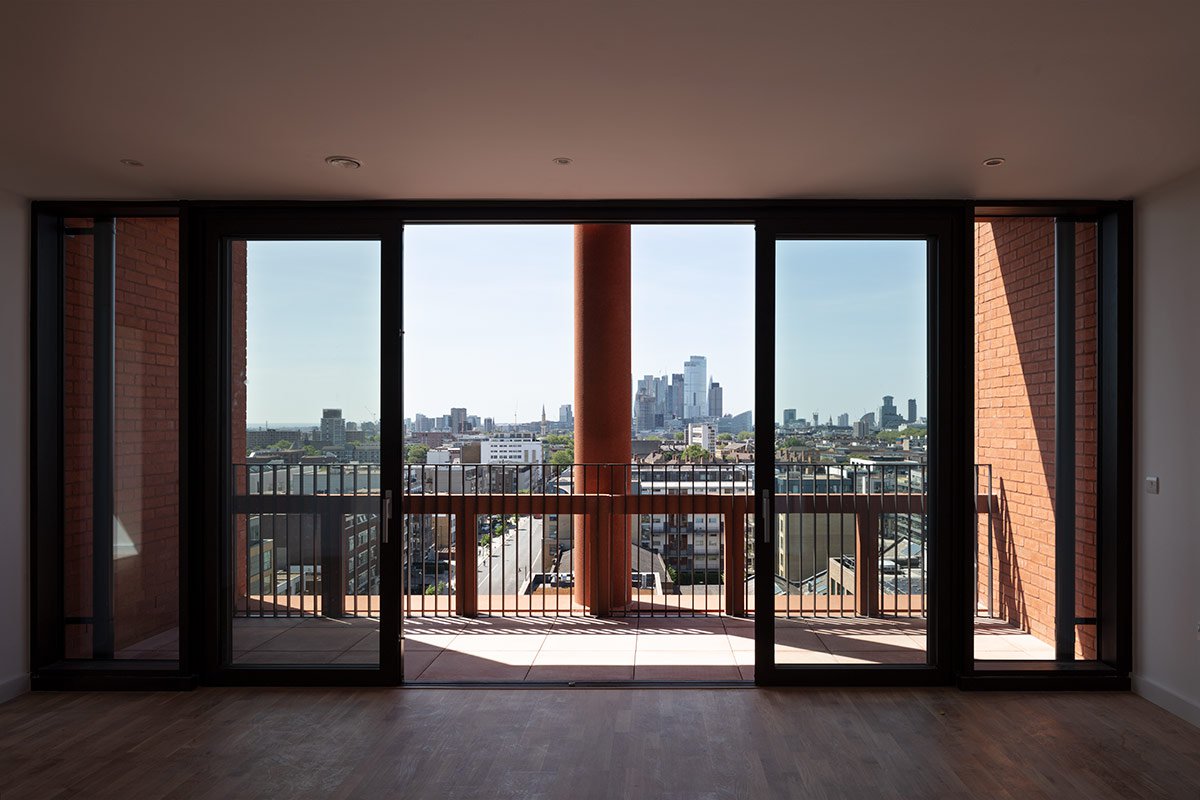

    Generous windows allow a panoramic view over East London
  • 3000_9_1508_09_web.jpg

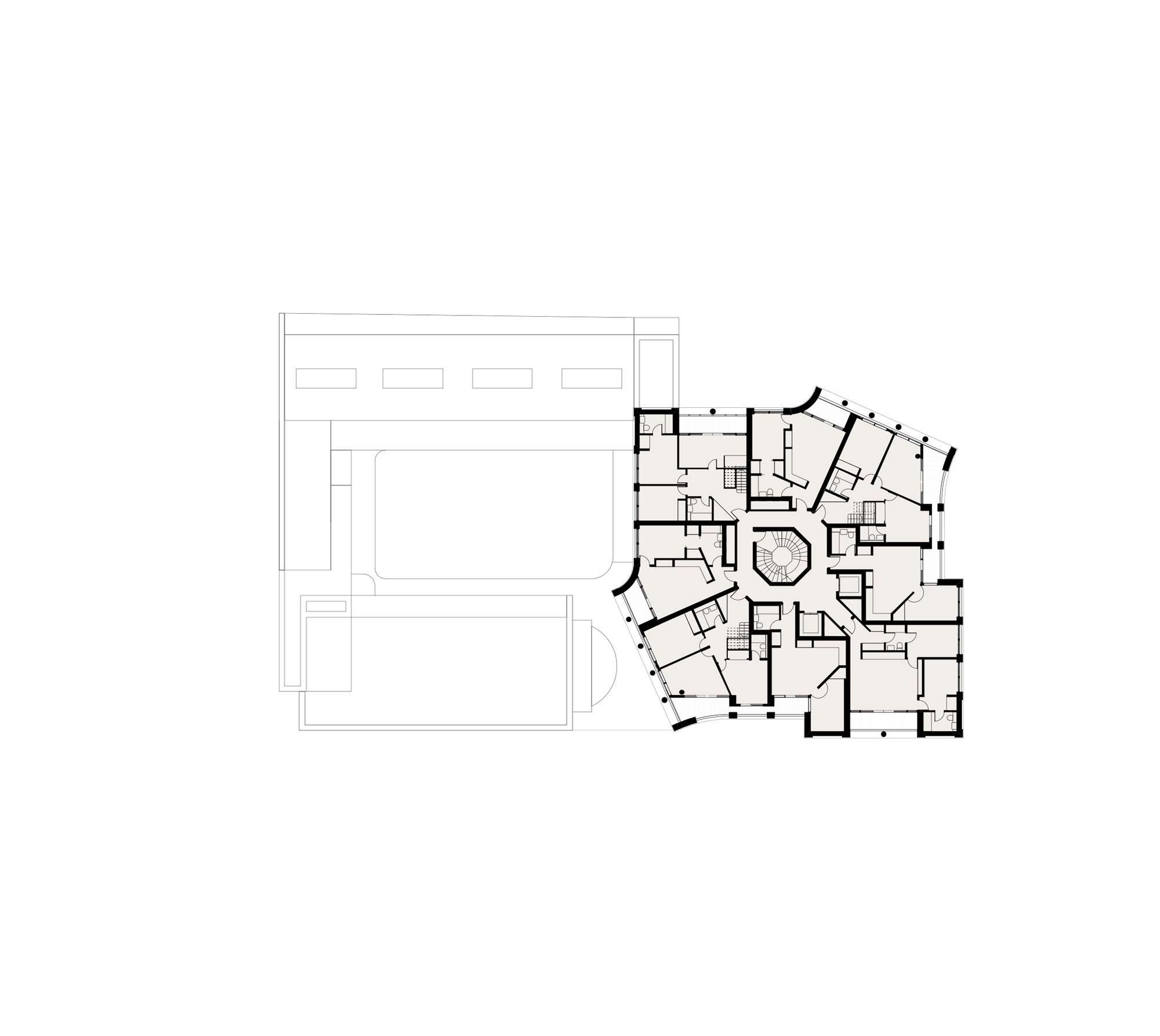

    Ninth floor plan - The plan of the building is molded – “pinched” and “twisted” – creating a solid convex curve as it turns a corner
  • 3000_91508_Photo_NK_hnpsres02_web.jpg

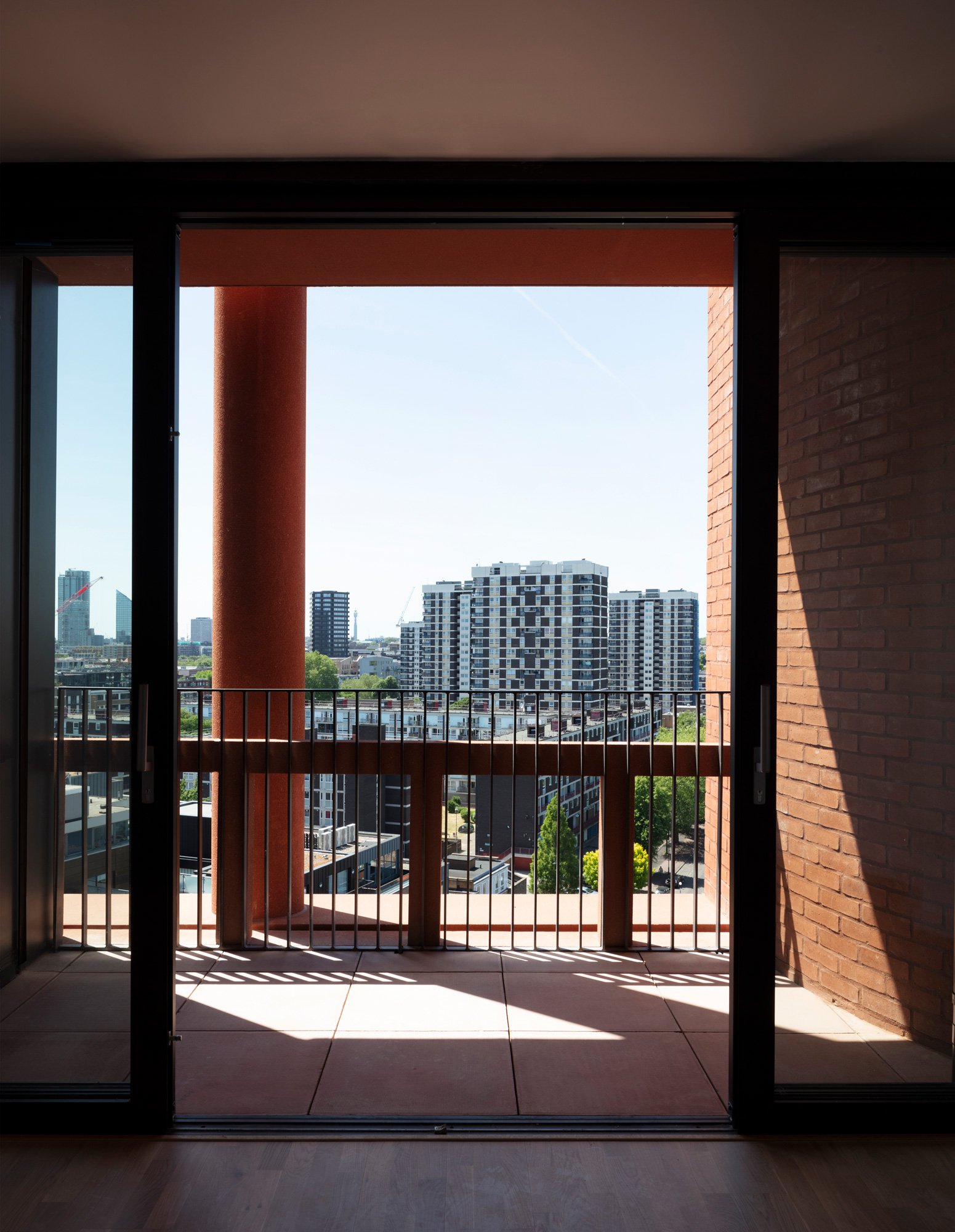

    Loggias mediate between household and city, providing generous outside space which far exceeds minimum standards
  • 3000_9_1508_10_web.jpg

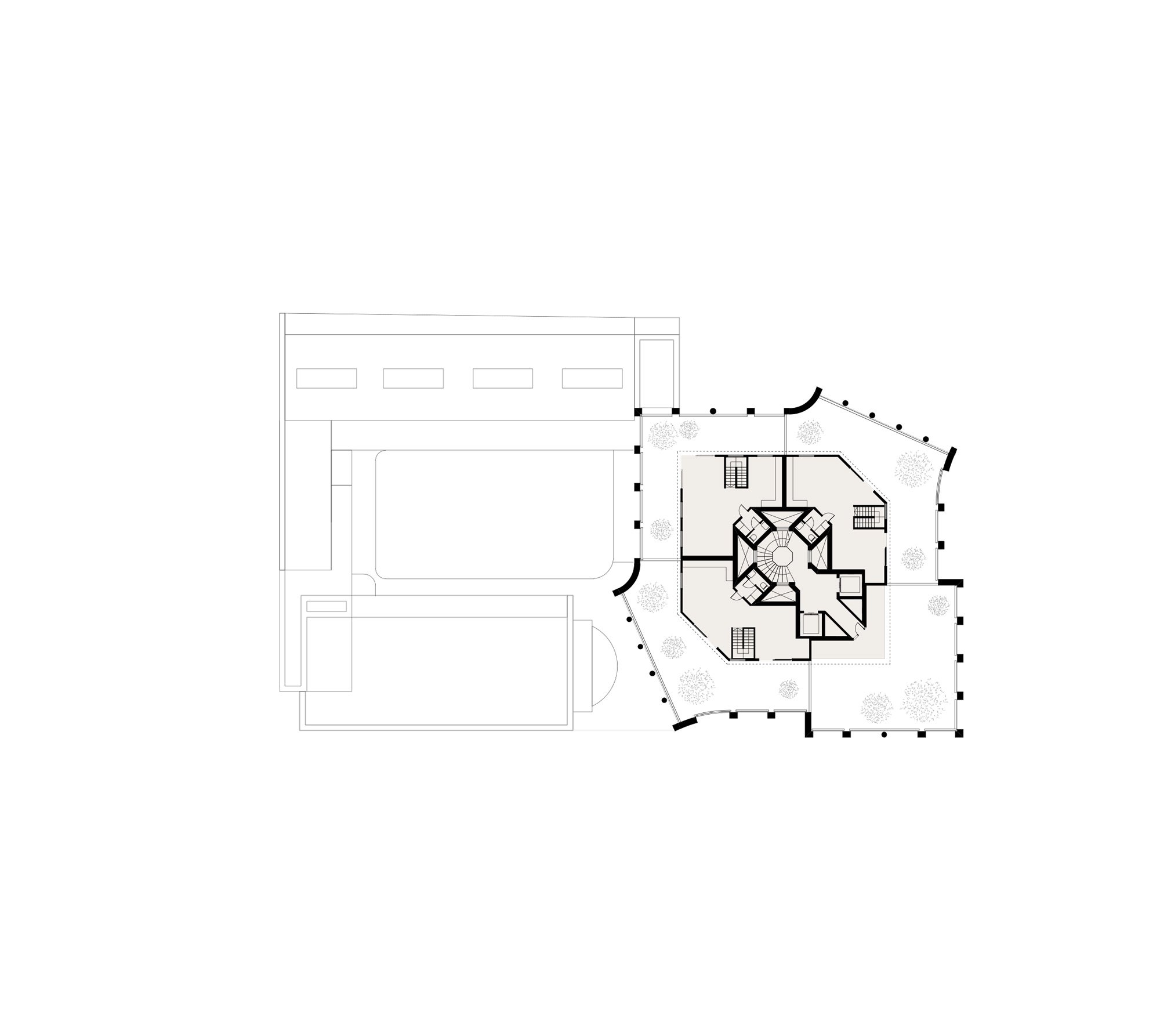

    Tenth floor plan - The point block clusters eight apartments on a floor around a central octagonal stair, providing a total of 68 dual aspect one and two-bed apartments and duplex three-beds penthouse
  • 3000_91508_Photo_NK_hnpsres08_copyright-Nick-Kane_web.jpg

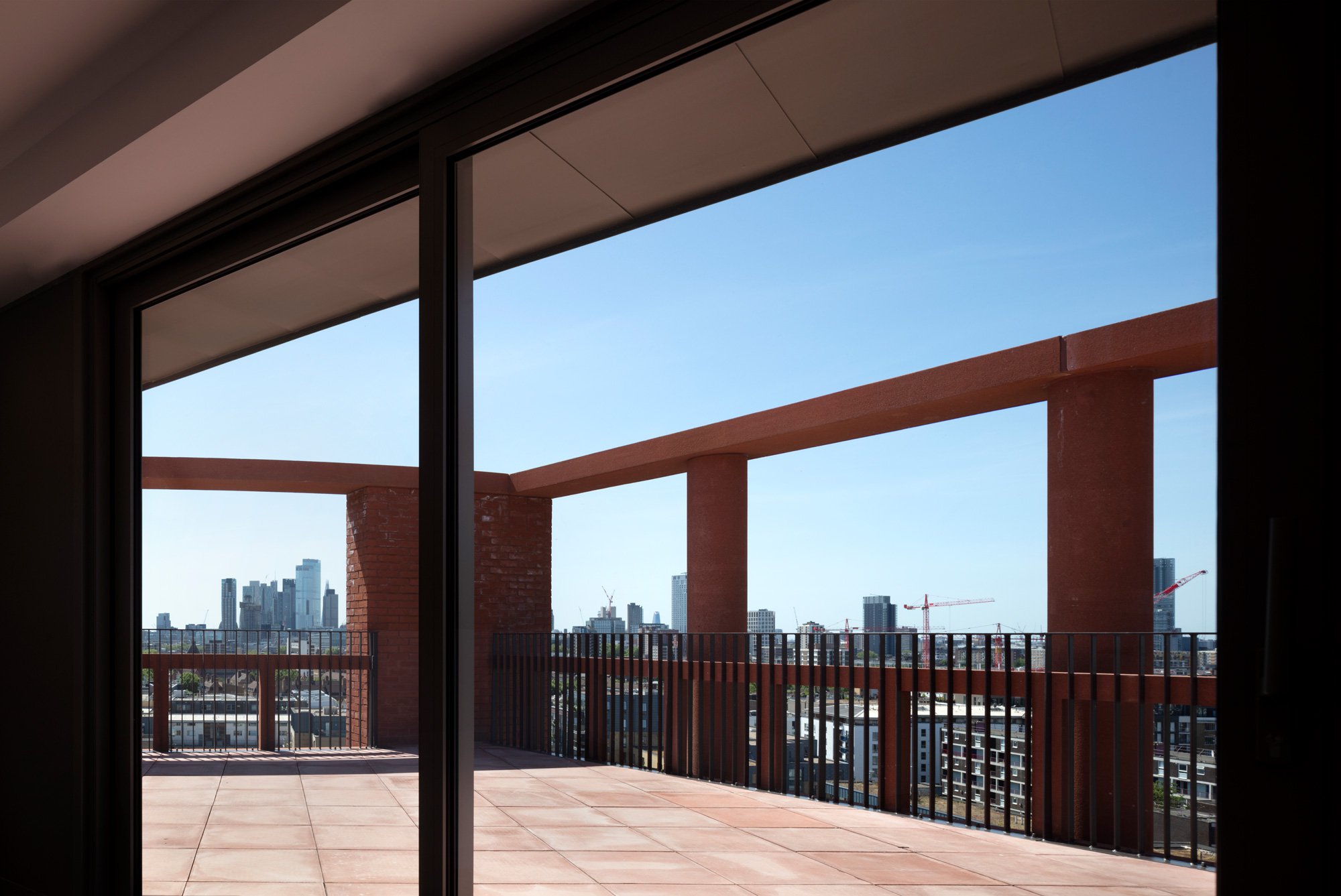

    The top of the tower is an open colonnade capped by a precast entablature with a communal roof terrace
  • 9_1508_NC_Resi_SE Corner.jpg

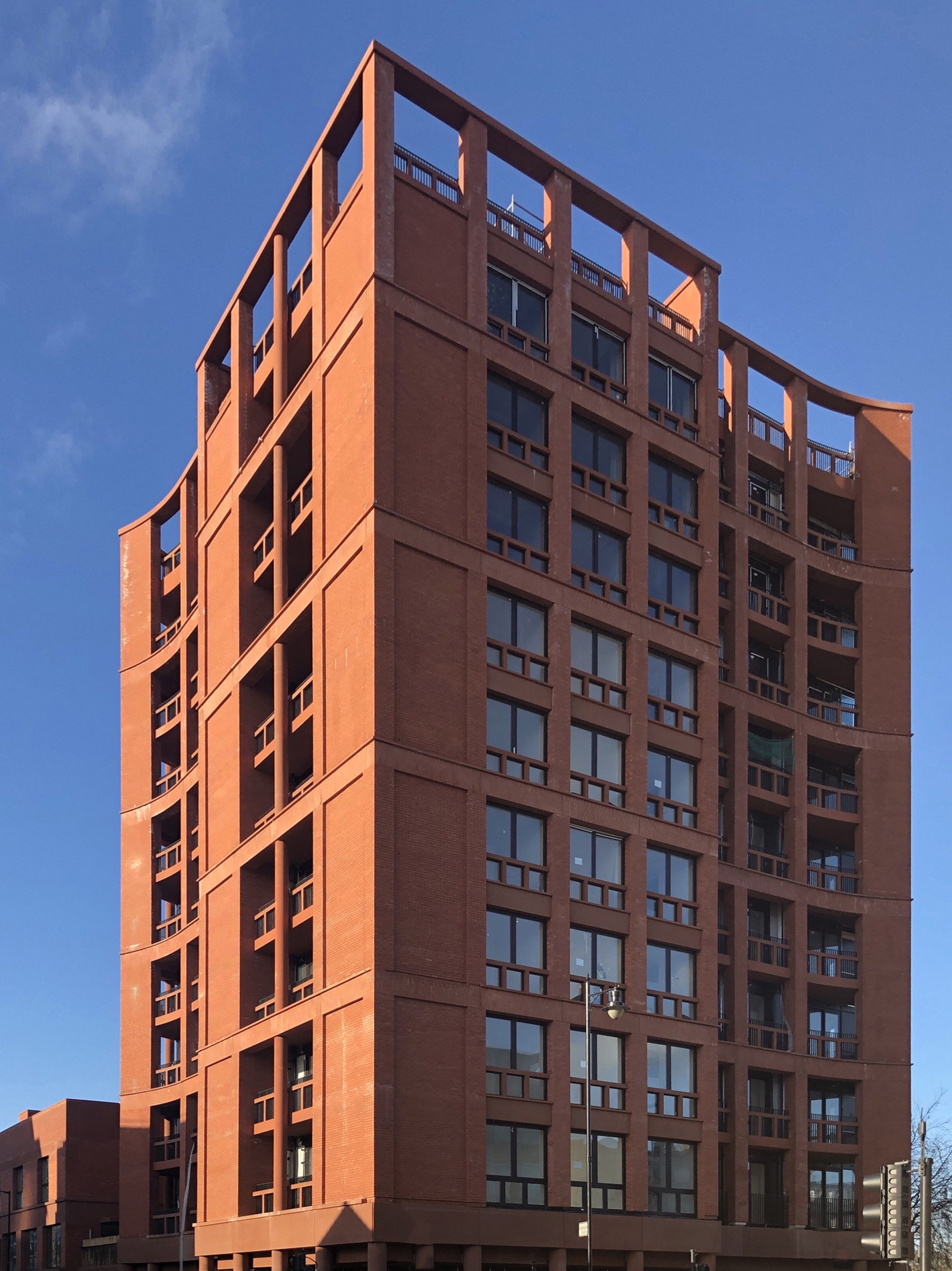

    The plan generates what appears to be a narrow point block on the south east corner
  • 3000_91508_Photo_LZ_Residential_5_copyright-Lorenzo-Zandri_web.jpg
    The richly coloured precast concrete is derived from the red sandstone aggregate and red sand used in the mix
  • 3000_91508_Photo_NK_hnpsres30b.jpg

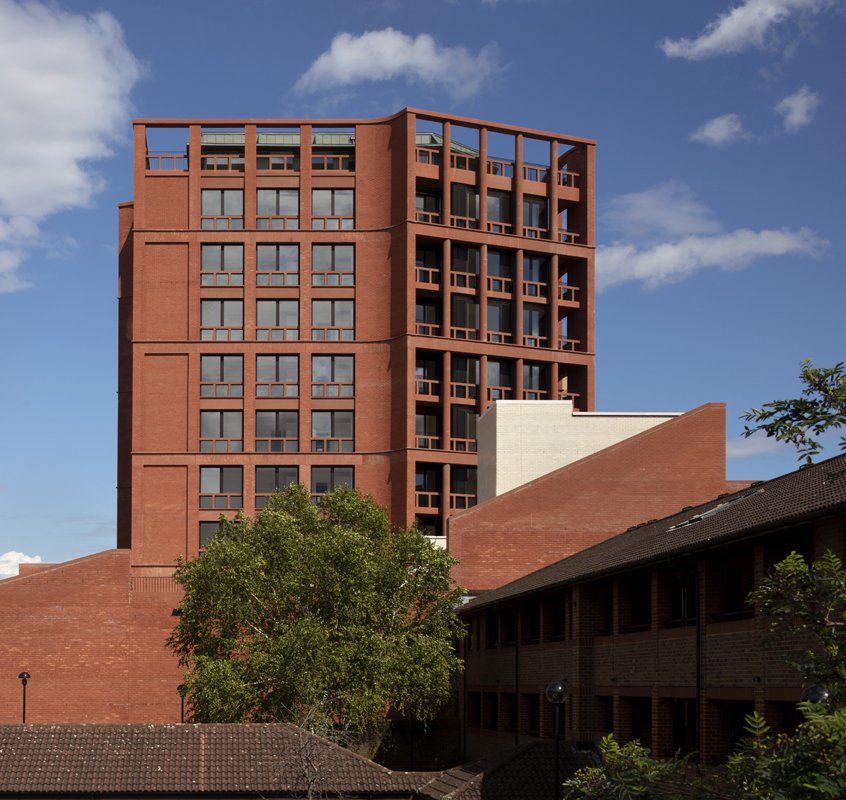

    The design uses the scale and composition of the tower’s façades and colonnades to give weight to the building
  • 3000_91508_Photo_LZ_Residential_4.jpg

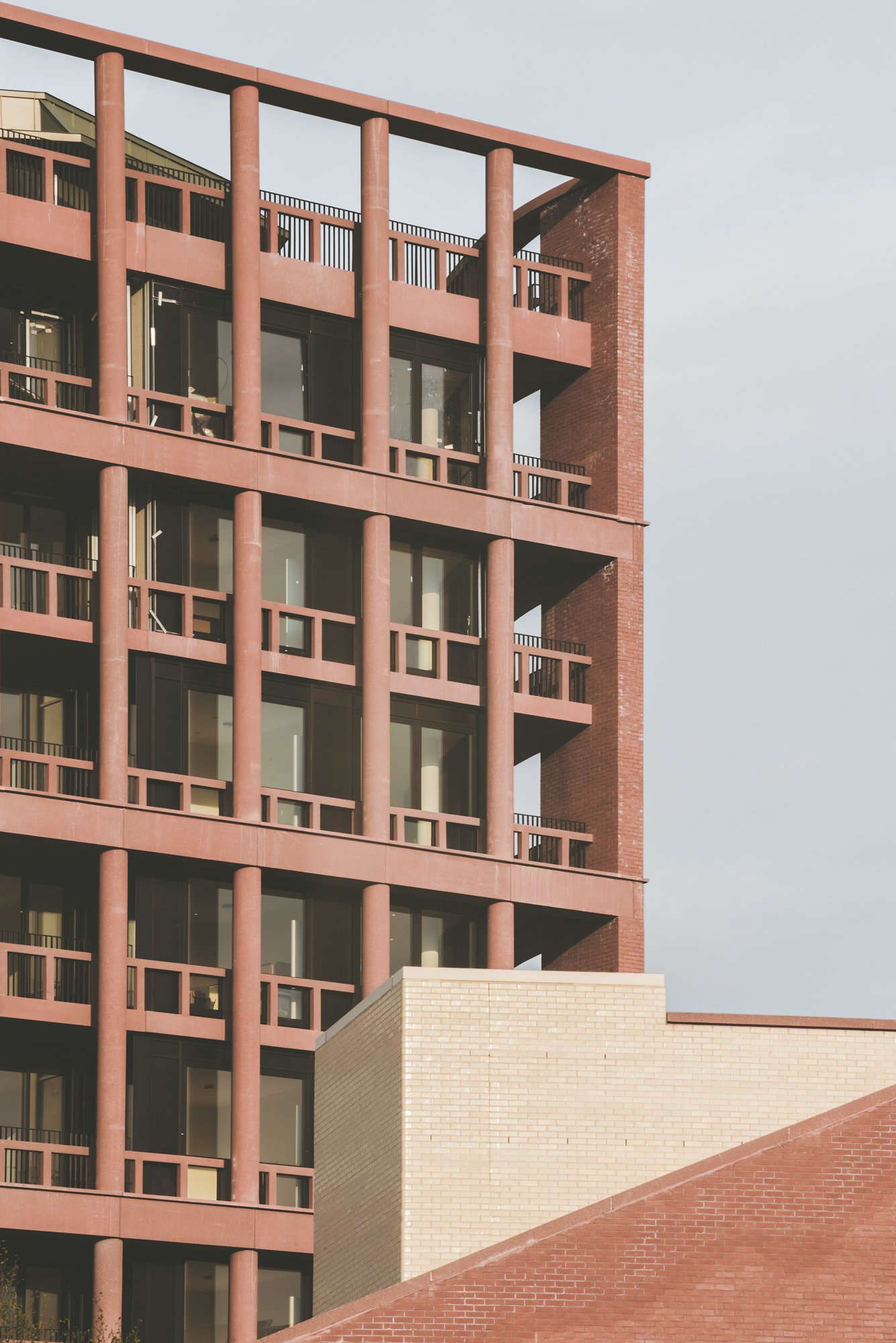

    Loggias provide a dignified robustness and thresholds to inhabit
  • 3000_91508_Photo_NK_hnps205_copyright-Nick-Kane_web.jpg

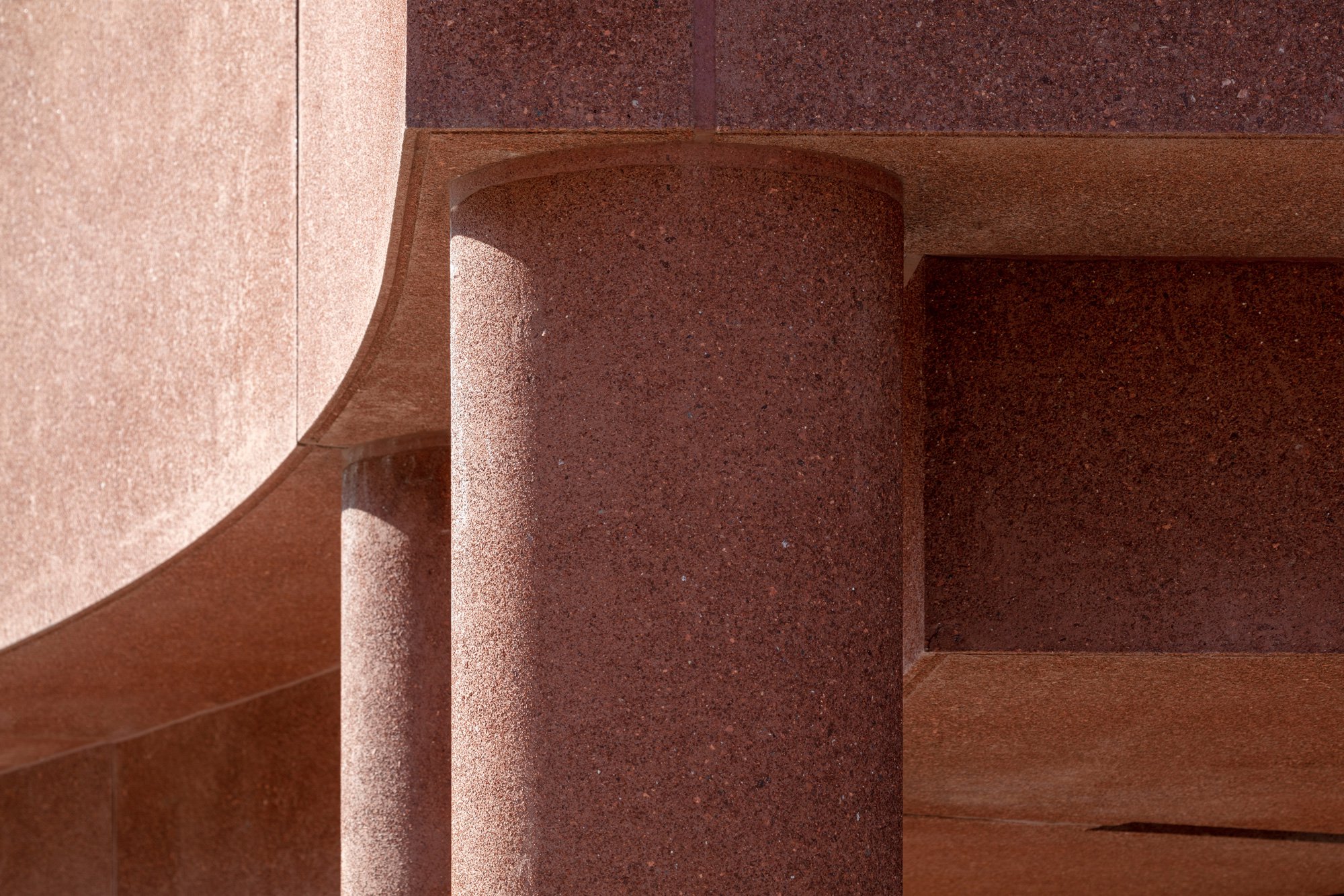

    The concrete is heavily acid etched to reveal the texture of the aggregate, which emphasises the weight and detail of the concrete overhead
  • HNPS stale 1

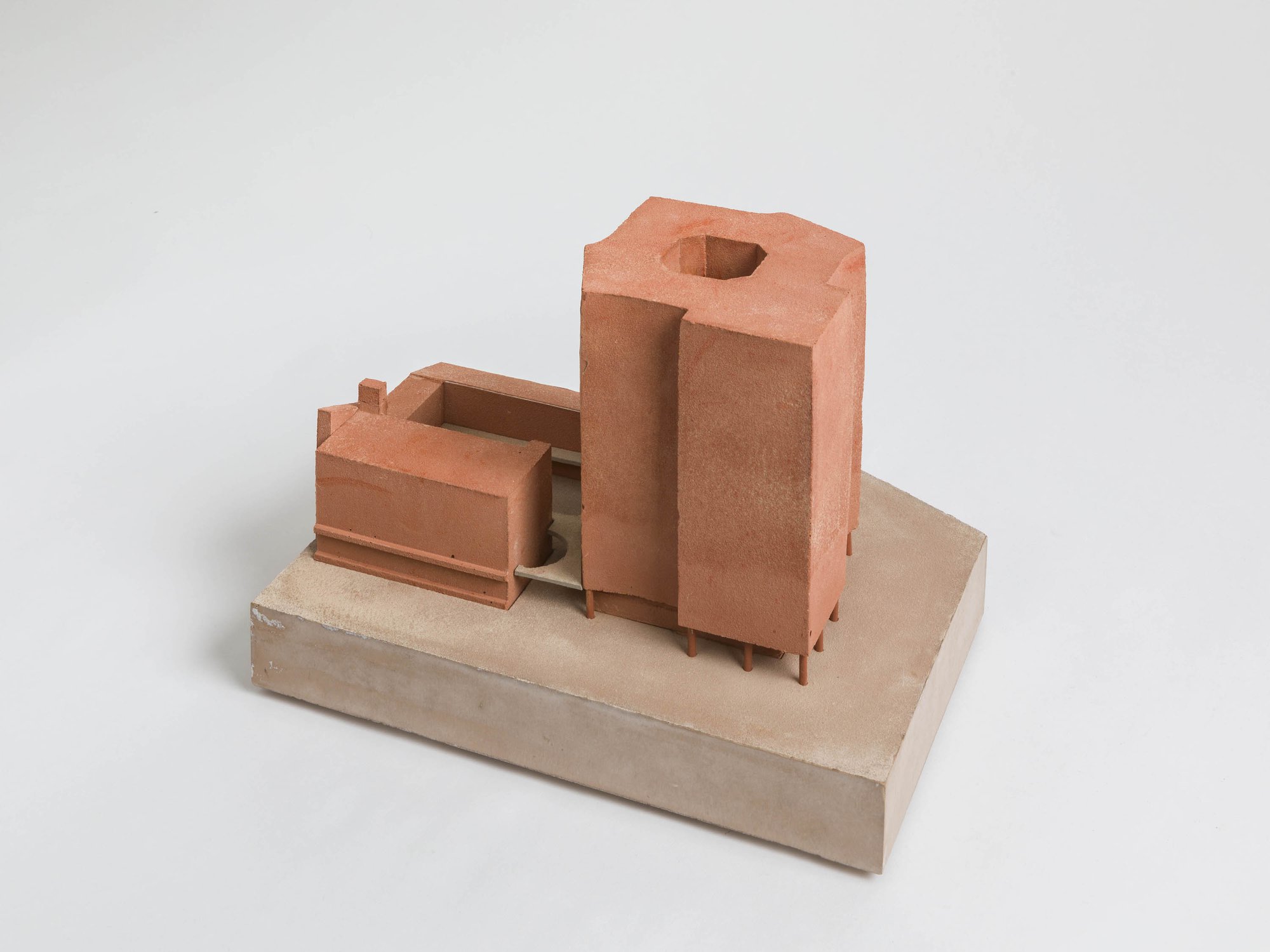

    Model of Hackney New Primary School (left) and 333 Kingsland Road (right)

Technical

  • Appointment: 2015
  • Construction start: 2017
  • Completion: 2020
  • Area: 8,535m2
  • Budget: £26m
  • Sustainable credentials: Over 80% of classrooms meet the UDI requirements and Daylight Autonomy (sDA300) 75% of the halls, dining, PE spaces and libraries meet the UDI requirements and Daylight Autonomy (sDA300)
  • Form of contract: Bespoke
  • Client: Thornsett
  • Client: The Benyon Estate
  • Main Contractor: Thornsett Structures
  • Funding Authority: Education and Skills Funding Agency
  • User Group: Hackney New Primary School Trust
  • Structural Engineer: Techniker
  • MEP Engineers: Elementa
  • Planning Consultant: CMA Planning
  • Principal Designer: Potter Raper Partnership
  • Approved Inspector: MLM
  • Fire Consultant: BWC Fire
  • Acoustic Consultant: Pace Consult
  • Landscape Consultant: Tyler Grange
  • Transport Consultant: Phil Jones Associates
  • Air Quality Assessor: Peter Brett Associates
  • Planting: Jennifer Benyon Design
  • Project Manager: RLB
  • Artwork: Paul Morrison
